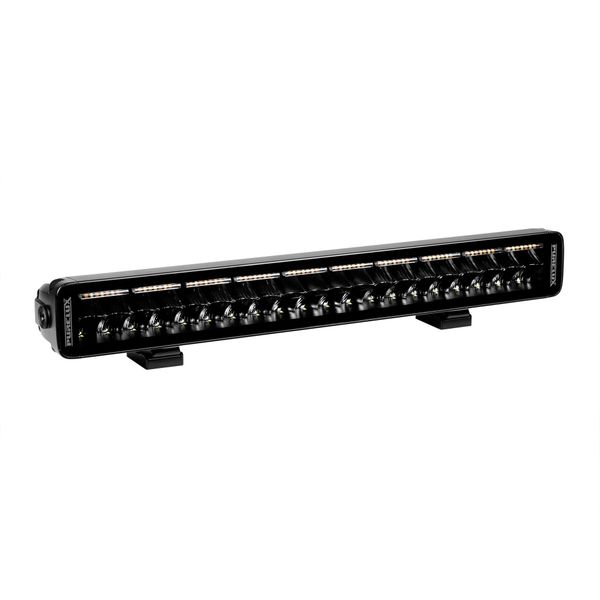

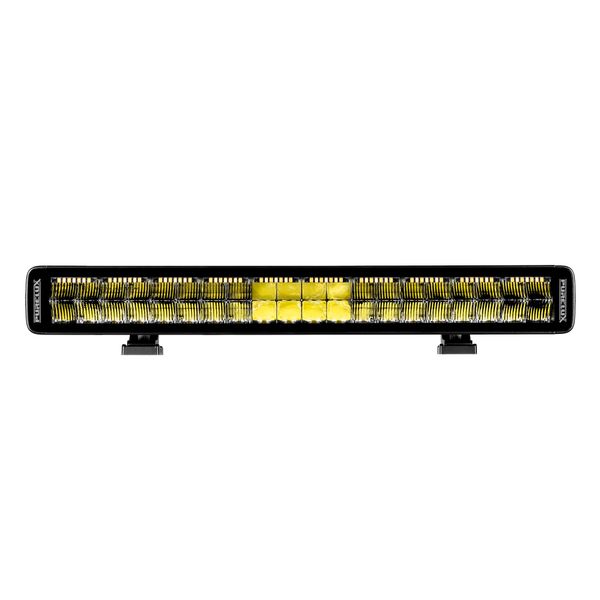

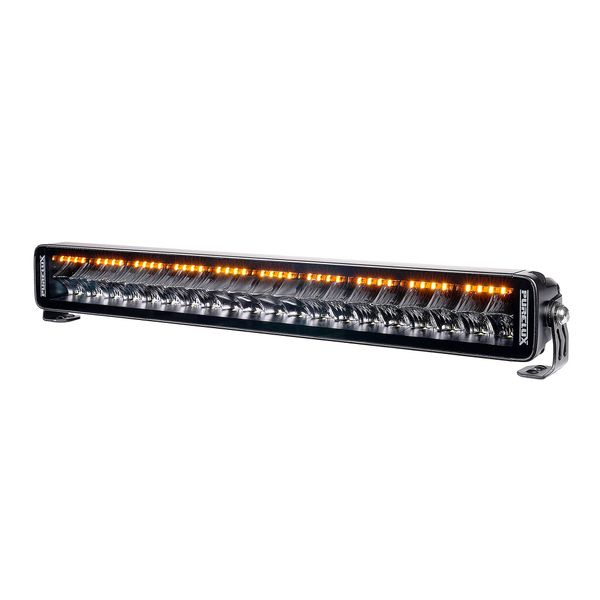

Led bar PURELUX Flash S560 Gen2 – Straight / 200W / Ref. 40

Description

Stylish and durable led bar that combines a powerful auxiliary light and R65-approved warning light in the same package. Two different power modes for off-road and on-road use, unique design and shock, water and dust resistant construction make the light a perfect solution for professional use. Measured light output 11692 lm, range 558 m @ 1 lux.

COMBINED AUXILIARY LIGHT AND WARNING LIGHT
PROFESSIONAL CHOICE

The Purelux Flash S560 Gen2 is a stylish combination of auxiliary light and warning light panel, whose versatile features make it the perfect choice for professional drivers. The panel has two different power modes, a combination beam optimized for road traffic, a warning light with R65 approval and an orange parking light. The highly refined features combined with dark optics and a stylish appearance ensure both a visible and impressive lighting solution for all vehicles that operate in special situations on and off the road. Thanks to the two different power modes, the panel can be switched to either a more moderate power mode approved for road traffic or a more powerful PowerBoost® mode designed for off-road traffic using a selection integrated into the user interface (see more below). In the full-power PowerBoost® mode, the panel’s light output is up to 11692 lumens and a range of 558 meters @ 1 lux, which is enough to brilliantly illuminate the road both far ahead and wide to the sides.

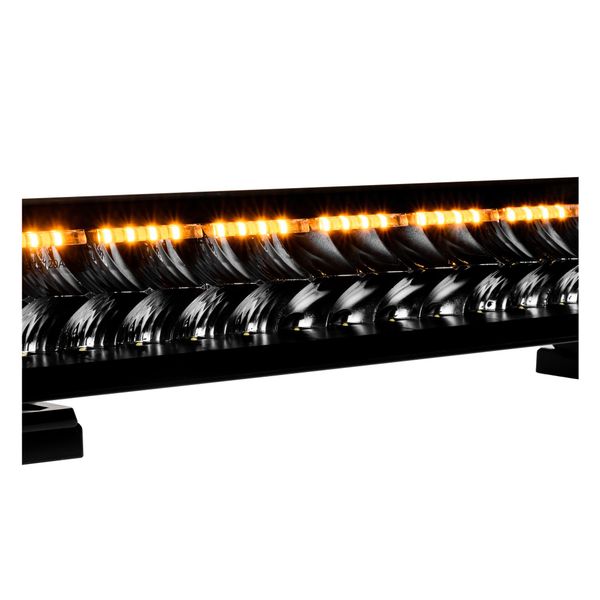

In addition to the effective extra length, the panel is also equipped with features that add style and functionality, such as ten multi-LED strips integrated into the top edge, which can be set to function as either an orange parking light or hazard warning lights. The ECE R65-approved hazard warning light can be switched on, for example, during work on the road, and its main function is to attract the attention of those moving around the vehicle to ensure the safety of both workers and others in the area. For this reason, the Flash S560 Gen2 hazard warning light is equipped with separately approved flashers for both night and day use (R65 Class 1 and Class 2). The flasher designed for night use is dimmer, so that other people in the area are not too dazzled, while the flasher designed for daytime use is so bright that it is clearly distinguishable even in bright sunlight. Thanks to its uncompromising features, the Purelux Flash S560 Gen2 raises the bar once again in terms of both driving and work safety.

The panel’s spotlight combines elements optimized for road traffic: in the center of the light pattern, there is a bright and clear main spot that offers a long range, and on both sides of it, a wide beam opens laterally from side to side of the road, starting right from the front. The light beam is shaped flat with reflectors, so that the light is not unnecessarily directed in front of the front or at the treetops. In addition, the panel is equipped with a 5700K color temperature that improves the quality of the beam and the resolution of the eyes, which, together with the even combined light beam, ensures excellent visibility in all situations.

The dark double-row optics, the slender frame and the frameless “no edge” lens form a stylish whole, which ensures a striking installation regardless of the vehicle. Thanks to the frameless lens structure, the front of the lamp remains significantly cleaner even in bad weather conditions and when driving on demanding terrain. The lamp body is made of an aluminum alloy that is highly resistant to shocks and vibrations, and the surface is finished with a high-quality special coating. The coating provides the lamp with effective protection against UV radiation, chemicals, corrosion and other external stresses, guaranteeing a long service life even in the most demanding applications. The lens is also designed to withstand demanding work, as it is made of practically unbreakable polycarbonate, which can withstand both stone impacts and scratches from branches without any problems.

The rather low and thin body of the two-row luminaire allows for discreet installation in any location. The compact design and extremely stylish appearance ensure that the luminaire is also suitable for newer cars! The light comes with rail brackets for both the end and the underside of the luminaire, so you can be sure to find suitable brackets for different styles of installation. The DTP connector on the light’s power cord makes connection easier, and the wide operating voltage allows installation in both 12V and 24V systems. Two-year (24 months) warranty!

Basic delivery content
Purelux Flash S560 Gen2
2 x Width-adjustable rail mounting feet
2 x End legs
Connection and installation instructions (EN/FI/SE/NO)
Delivery content (1 piece – Complete set)
Basic delivery content
Relay wiring kit Purelux Pro Serie 12V, HD DTP (1 x 1 output)
Auxiliary light bracket for EU license plate, Purelux
Support bars, 2 pcs
Delivery content (1 pc – Complete set with flush mounting bracket)
Basic delivery content
Relay wiring kit Purelux Pro Serie 12V, HD DTP (1 x 1 output)
Adjustable additional light bracket for EU license plate, Purelux
Support bars, 2 pcs
Specifications
Brand and model: Purelux Flash S560 Gen2
Intended use: As an additional light in cars / Off-Road vehicles / construction machinery
Operating voltage: 10-30V
Reference number: 40
Calculated power: 200
Power consumption measured by the light bulb
Purelux PowerBoost®: 6.85A @ 24V
Road mode: 3.9A @ 24V
Warning light: 1.1A @ 24V
Power measured by the light bulb
Purelux PowerBoost®: 164.6 W @ 24V
Road mode: 93.9 W @ 24V
Warning light: 26.5 W
Manufacturer’s declared luminous efficacy: 16800 lm (Purelux PowerBoost®)
Measured by Valostore: 11692 lm (Purelux PowerBoost®)
Measured by Valostore: 6631 lm (Road traffic mode)
Range measured by the light tower: 558 m @ 1 lux / 1116 m @ 0.25 lux (Purelux PowerBoost®)
Range measured by the beacon: 430 m @ 1 lux / 860 m @ 0.25 lux (Road mode)
Manufacturer’s stated color temperature: 5700 K
Measured by Valostore: 5816 K
Mounting: End legs, width-adjustable bottom legs
Connector: DTP-2
Parking lights + wires separate
Cable length: 50 cm
Dimensions: 560.6 x 70 x 67.3 mm (Width x Height x Depth)
Height with end feet: 86 mm
Weight: 2500g
IP rating: IP68
Approvals: ECE R10, R65, R148, R149*
*Road traffic approval does not apply to PowerBoost® mode
Warranty: 24 months
Importer: Handshake.fi
Installation guide

Coupling

DTP connector: Additional light connection
Green: Warning light Class 2 (Day mode)
Green + Grey: Warning light Class 1 (Night mode)
Green + Yellow (momentary): Changing the hazard light mode

Powerboost and ECE R149-mode activation:

Turn the light on for 2 seconds, then turn the light off and on 2 times and the power mode changes. If the light is on, turn it off for 5 seconds before you can change the power mode again. The light has a memory and it works in the selected power mode until the next time the power mode is changed.

You can find the manufacturer’s connection and installation instructions (FI/SE/NO/DK/EN) by clicking here.
