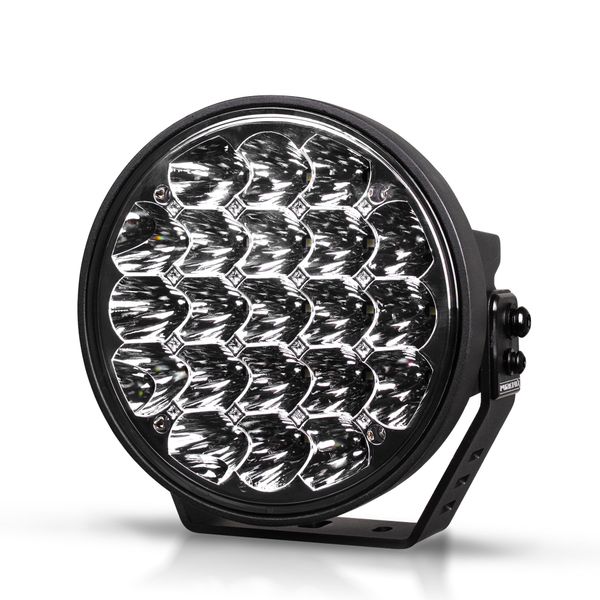

Auxiliary light PURELUX 770 – Round / 18 cm / 130W

Description

A 7″ auxiliary light with insane performance and long range at a reasonable price for demanding users. Measured 11550 lumens of light output and 807 meters of range @ 1 lux! Not E-approved.

UPDATED GEN2 VERSION
MORE POWER THAN EVER
LONGER RANGE 807 M @ 1 lux!
GEN2 main features
UNLIMITED = NO POWER LIMIT
Narrow beam – long range
MEASURED RANGE UP TO 807 m (@ 1 lux)
MEASURED LIGHT OUTPUT NOW 11,550 lm (+ 5%)
Stylish black body
Too powerful – NOT E-Approved

The Purelux 770 Gen2 is an updated version of Purelux’s popular 770 auxiliary light, which has become known for its insane size-to-power ratio and truly far-reaching beam. With the update, the light is now even more powerful than before, and it produces a completely sovereign 11550 lumens of light output for a 7″ auxiliary light and a beam that extends up to 807 meters (@ 1 lux). The tremendous light output and long range are achieved with the help of extremely tuned electronics, updated LEDs and reflector optics optimized for these LEDs. When this package is combined with a pleasant 5500K color temperature, it creates a practically perfect auxiliary light for motorists looking for maximum performance and a far-reaching beam. Due to its high power and narrow beam, the light is not approved for road use, but is intended for use, for example, off-road or on closed tracks. Not E-approved!

Note! The same light is also available with a white body: Purelux 770 White

A spreading scratch shield is also available for the light, which can be used to widen the light beam laterally. The guard is available in white and yellow.

The 770 Gen2 differs from traditional auxiliary lights with a combined beam in its narrow beam pattern, which allows the 770’s beam to have a range of up to over 800 meters (1 lux). In addition to the maximum range, the beam can also be easily increased in width by installing two or more lights in parallel, allowing some of the lights to be directed to illuminate more of the edges of the road, and some can be directed straight ahead. With more lights, the beam range also increases further, meaning the landscape ahead can be illuminated in a completely unprecedented way. The tremendous light output combined with the color temperature of 5500 Kelvin ensures that the eyes will not be strained even on long drives. In addition, the neutral color temperature of the lamp makes it easier to perceive terrain shapes and works better than cool tones even in bad weather conditions, such as fog and rain.

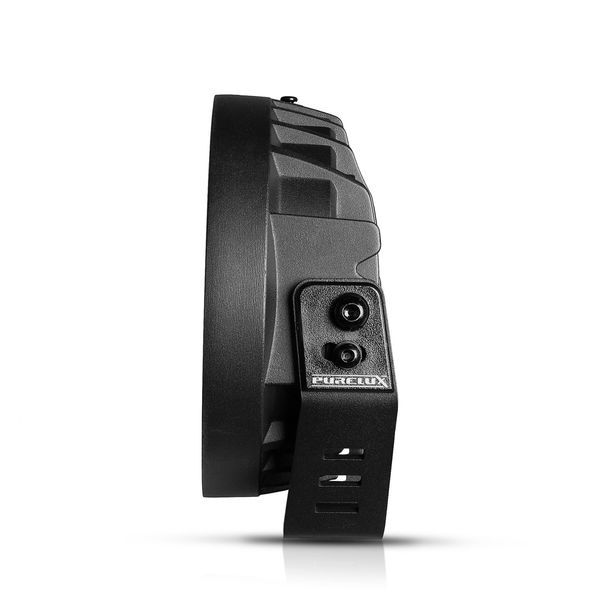

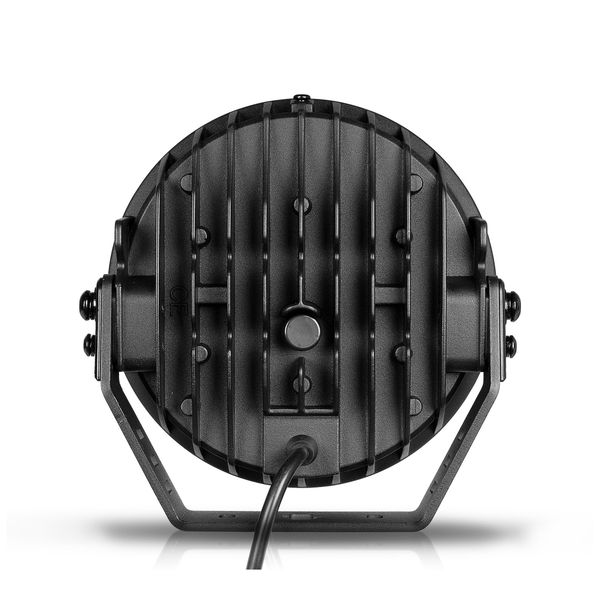

The 770 Gen2’s sturdy aluminum frame, rugged construction, and virtually unbreakable Lexan polycarbonate lens ensure durability even in demanding conditions. The light is completely dust and watertight according to the IP68 protection rating, and it is also radio interference-proof according to the R10 standard. All in all, this is a light that can withstand even the toughest conditions, such as on the front of an SUV! Installation is made easier by the DT-2 connector on the light’s power cord and the ready-made place for a support bar on the frame. It should also be noted that the light is not E-approved, and for this reason we do not recommend installing the light on a vehicle intended for road use. The 770 is primarily intended for off-road use and closed tracks only. Two-year (24 month) warranty!

Basic delivery content
Purelux 770 Gen2 UNLIMITED
Mounting foot
Fastening accessories
Vibration damping pad
Delivery content (2 pieces – Complete set)
2 x Basic delivery contents
Auxiliary light bracket for EU license plate
Relay wiring kit Purelux Pro Serie 12V, DT-2 (2 outputs)
Stabilizer, 2 pcs
Delivery content (3 pieces – Complete set)
3 x Basic delivery content
Auxiliary light bracket for EU license plate , 3 mm thick HD model
Relay wiring kit Purelux Pro Serie 12V, DT-2 (3-output)
Stabilizer, 4 pcs
Delivery content (4 pieces – Complete set)
4 x Basic delivery contents
Auxiliary light holder Purelux HD
Relay wiring kit Purelux Pro Serie 12V, DT-2 (2 pcs 2-output)
Stabilizer, 4 pcs
Delivery content (4 pieces – Complete set WRC)
4 x Basic delivery contents
Auxiliary light holder Purelux WRC, for 4 lights
Relay wiring kit Purelux Pro Serie 12V, DT-2 (2 pcs 2-output)
Stabilizer, 4 pcs
Delivery content (5 pcs – Complete set WRC)
5 x Basic delivery content
Auxiliary light holder Purelux WRC, for 5 lights (max. 230 mm)
Relay wiring kit Purelux Pro Serie 12V, DT-2 (1 pc 2-output, 1 pc 3-output)
Stabilizer, 6 pcs
Delivery content (6 pieces – Complete set WRC)
6 x Basic delivery content
Auxiliary light holder Purelux WRC, for 6 lights (max. 230 mm)
Relay wiring kit Purelux Pro Serie 12V, DT-2 (2 pcs 3-output)
Stabilizer, 6 pcs

You can find standard scratch shields here

Specifications
Brand and model: Purelux 770 Gen2
Intended use: As an additional light in SUVs / construction machinery
Operating voltage: 11-32 V
Reference number: – (NOT E-approved)
Current consumption measured by Valostore: 12.2A @ 12V / 6.1A @ 24V
Power measured by the light bulb: 146.5 W
Luminous efficacy measured by Valostore: 11550 lm
Range measured by the light tower: 807 m @ 1 lux / 1614 m @ 0.25 lux
Range with multiple lights, measured (@ 1 lux):
With two: 1141 m (@ 1 lux)
With three: 1398 m (@ 1 lux)
For four: 1614 m (@ 1 lux)
Manufacturer’s stated color temperature: 5500 K
Measured by Valostore: 5632 K
Mounting: Mounting stand
Connector: Deutsch DT-2
Cable length: 500 mm
Dimensions: 180 x 82 mm (Diameter/Depth)
Height with foot: 197 mm
Weight: 1700g
IP rating: IP68
Approvals: ECE R10, CE, RoHS
Warranty: 24 months
Importer: Handshake.fi
Installation guide

General connection and installation instructions here: Additional lights installation guide. The link contains the most common installations, including using a relay wiring harness, as well as a guide to installing additional lights on the CAN bus.
