Auxiliary light PURELUX 9110 DRL – Round / 23 cm / 175W / Ref. 50

Description

Amazing light cannon with a great price-performance ratio, great light output, two-color parking light and a spotlight beam that can reach more than a kilometer! Measured light output 13 696 lm, measured range 1039 m @ 1 lux.

UPDATED GEN2 VERSION
LIGHT OUTPUT 13 226 LM!
RANGE 1039 M @ 1 lux!
GEN2 main features
TWO POWER MODES – e-approved and UNLIMITED!
Stylish dark optics
Narrow beam – long range
MEASURED LIGHT OUTPUT 13 696 lm
AWESOME 1039 m measured range
Orange and white parking light

Purelux 9110 UNLIMITED DRL Gen2 is an orange and white parking light version of its manufacturer’s illegally powerful and very long-range 9110 UNLIMITED auxiliary light. This light offers maximum performance even for demanding drivers, and thanks to its amazing price/power ratio, it competes completely in its own class. Highly tuned electronics combined with the best Osram LEDs on the market enable a measured light output of almost 13,000 lumens, while the reflector optics optimized for these LEDs form a beam of light reaching up to 1016 meters (1 lux). The user experience is crowned by an eye-pleasing color temperature of 5500 Kelvin, optimized for vehicle use, which maximizes sharpness and accuracy. As a new feature, the light has also been introduced in an e-approved lower power mode (6119 lm, 678 m @1lux) for road traffic use and poor conditions (rain, snowfall, fog).

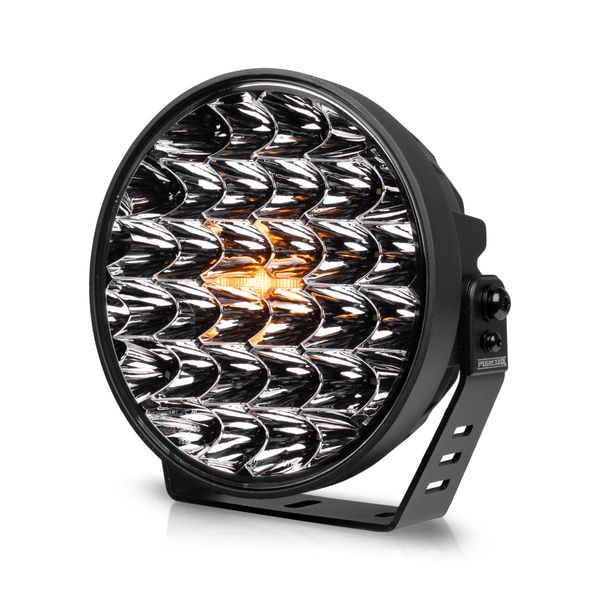

In addition to the tremendous power, the 9110 UNLIMITED DRL Gen2 is equipped with a stylish, orange or white parking light, which is ingeniously placed in the center of the lamp. A bright, shining small line of light spreads the light directly onto the reflector surfaces of the lamp, whereby the light radiating from the reflectors illuminates practically the entire lens, creating an eye-catching effect that no one will notice. Simply stylish and unimaginably powerful, the 9110 UNLIMITED DRL GEN2 is an excellent choice for anyone who needs an auxiliary  light with unlimited light output, maximum performance and an exceptionally far-reaching beam.

Note! The same lamp is also available with a white frame: Purelux 9110 UNLIMITED DRL White

There is also an applicable stone splash guard available for the light, which can be used to widen the light beam laterally. Protection available in white and yellow .

The 9110 UNLIMITED DRL differs from traditional auxiliary lights equipped with a combined light beam with its narrow light pattern, which enables the 9110 beam to reach over a kilometer (1 lux). In addition to the maximum range, the width of the light beam can also be easily increased by installing two or more lights in parallel, so that some of the lights can be directed to illuminate more of the edges of the road, and some can be directed straight ahead. With the power of more light, the range of the light beam also increases even more, which means that the landscape that opens up in front can be illuminated in a completely unprecedented way. The tremendous light output combined with a color temperature of 5500 Kelvin guarantees that the eyes will not be strained even during a long drive. In addition, the neutral color temperature of the lamp makes it easier to visualize terrain shapes and works better than cool shades even in bad weather conditions, such as fog and rain.

The 9110 UNLIMITED DRL’s strong aluminum frame, sturdy construction and practically unbreakable Lexa polycarbonate lens ensure durability even in demanding conditions. The Purelux 9110 UNLIMITED DRL is dust and waterproof according to the IP68 protection rating, and it is also radio interference protected according to the R10 standard. All in all, this is a light that lasts even when going hard, like on the front of an SUV for example! Two-year (24 months) warranty!

Valostore’s comment: “The best-selling auxiliary spotlight in its category has been updated! The 9110 DRL combines the wild performance known from the 9110, a really far-reaching spot light beam and a stylish two-color parking light. The version with orange and white parking light of this light cannon designed for off-road use makes it an even better option for those who want not only unlimited light output, but also elegant details. The parking light, realized in an exceptional way, illuminates practically the entire lens when it is on, which fits the image of this already rough auxiliary light perfectly!”

Basic delivery content (1 pc)
Purelux 9110 UNLIMITED DRL Gen2
Mounting leg
Fastening accessories
Anti-vibration pad
Delivery contents (2 pcs – Complete set)
2 x Basic delivery contents
Auxiliary light holder for the EU license plate
Relay wiring kit Purelux Pro Series 12V, HD DTP, (1 pc 2-output)
Stabilizer, 2 pcs
Delivery contents (3 pcs – Complete set)
3 x Basic delivery contents
Auxiliary light holder for EU license plate, 3 mm thick HD holder
Relay wiring kit Purelux Pro Serie 12V, HD DTP, (1 pc 3-output)
Stabilizer, 4 pcs
Delivery contents (4 pcs – Complete set)
4 x Basic delivery contents
Auxiliary light stand Purelux HD, for 4 lights
Relay wiring kit Purelux Pro Series 12V, HD DTP, (1 x 4-output)
Stabilizer, 4 pcs
Delivery contents (4 pcs – Complete set WRC)
4 x Basic delivery contents
Auxiliary light stand Purelux WRC, for 4 lights
Relay wiring kit Purelux Pro Series 12V, HD DTP, (1 x 4-output)
Stabilizer, 4 pcs
Delivery contents (5 pcs – Complete set WRC)
5 x Basic delivery contents
Auxiliary light holder Purelux WRC 5, 5 lights
Relay wiring kit Purelux Pro Series 12V, HD DTP, (1 x 1-output, 1 x 4-output)
Stabilizer, 6 pcs
Delivery contents (6 pcs – Complete set WRC)
6 x Basic delivery contents
Auxiliary light holder Purelux WRC, for 6 lights (max. 230 mm)
Relay wiring kit Purelux Pro Series 12V, HD DTP, (1 x 2-output, 1 x 4-output)
Stabilizer, 6 pcs

Normal scratch shields can be found here

Technical information
Brand and model: Purelux 9110 UNLIMITED DRL Gen2
Purpose: As an auxiliary light in off-road vehicles / construction machines
Operating voltage: 9-48V
Reference number: 50
Calculated power: 175 W
Power consumption measured by Valostore
UNLIMITED: 13.48A @ 12V / 6.74A @ 24V
E-approved: 2.45A @ 12V / 4.89A @ 24V
Power measured by Valostore: 161.7 W
Light output measured by Valostore: 13 696 lm
Range measured by Valostore: 1039 m @ 1 lux / 2078 m @ 0.25 lux
Range with more lights, measured (@ 1 lux):
With two: 1469 m (@ 1 lux)
With three: 1800 m (@ 1 lux)
With four: 2078 m (@ 1 lux)
Color temperature stated by the manufacturer: 5500 K
Measured by Valostore: 5504 K
Mounting: Mounting base
Connector: DTP-2
The parking lights + wires are separate
Cable length: 500 mm
Dimensions: 230 x 90 mm (Diameter/Depth)
Height with foot: 235 mm
Weight: 2500 g
IP rating: IP68
Approvals: EMC: ECE R10, R148, R149
Other: The light has a ready-made place for stabilizer
Warranty: 24 months
Importer: Handshake.fi
Installation guide

Coupling

DTP-2 connector: Auxiliary light connection (full power)
DTP-2 connector + blue wire: Auxiliary light connection (low power mode)
White: White parking light
Yellow: Orange parking light

You can find the manufacturer’s connection and installation instructions by clicking here.
