Auxiliary light PURELUX Panther 11 – Rectangle / 24 cm / 170W / Ref. 20

Description

A powerful additional light that shakes up appearance standards, with a stunning combination beam and R65-approved warning light, especially for higher installations and heavy equipment. The lamp has two different power modes and a two-color parking light, measured light output 10811 lm, range 751 m @ 1 lux.

PRODUCT DESCRIPTION – PACKAGE CONTENTS – TECHNICAL DATA

PowerBoost® technology
A beam optimized for heavy equipment
R65 approved warning light
10811 lumens, 751 meters (@ 1 lux)
Optimal 5000K color temperature
Stylish two-tone parking light
Frameless Lexan polycarbonate lens

The Purelux Panther 11 is a “round” auxiliary light from its manufacturer’s Panther product family, designed specifically for the needs of heavy equipment. Like other lights in the same series, this light cannon is also equipped with top features that will convince even demanding users. Two different power modes, an R65-approved orange warning light, a stunning combination light beam specially designed for high installation locations and an excellent light output of 10811 lumens make the Panther 11 the perfect solution for roof and light rail installations on trucks and vans, as well as vans and SUVs. Thanks to the two different power modes, the same light can be used to its maximum advantage in all situations: the more moderate power mode is approved for road use with a low reference number (20), while the PowerBoost mode, which releases all the power and is intended for off-road use, harnesses the impressive light output and increases the beam range to up to 751 meters (@ 1 lux), saying goodbye to compromises.

Note! The same lamp is also available with a white frame: Purelux Panther 11 White

“Notorious Panther performance”

Unlike usual, there is no need to connect or disconnect any extra cable to activate the different power modes of the light, but switching between PowerBoost® and road mode is done using a unique selector integrated into the user interface. This means that the power mode can be changed easily and quickly directly, even while driving.

Note! The difference between Purelux PowerBoost® and road mode is clearly noticeable in use – PowerBoost® mode is significantly more efficient and should not be used when driving in normal road traffic, only off-road.

The Panther 11’s beam consists of a rectangular, wide main beam, which is a great combination of both range and width. The beam opens up right from the front and illuminates the entire road from side to side, while the brighter main spot in the middle of the beam directs the light far ahead. The beam is very similar in shape to other lights in the Panther series, but compared to the Panther 9, for example, the Panther 11 has a slightly tighter main spot, and its beam is also slightly higher vertically and a little wider in width. The higher beam in the vertical direction makes the Panther 11 an excellent option for higher installation locations, such as upper light bars on trucks and roof installations, while the Panther 9 is a better option for directly in front.

In addition to its excellent beam, the Panther 11 is also equipped with an R65-approved orange warning light, which can be used, for example, in special transport, when the vehicle is moving from the road to the construction site or for example in traffic control. The bright warning light will not go unnoticed by anyone, so the safety of those working on the vehicle is guaranteed without separate warning lights. The warning light can be installed, for example, behind a separate switch, so that it can be used whenever needed. The warning light has five different flashing functions, and in addition, several lights can be synchronized with each other, so that they can be flashed at the same time and the overall appearance of the vehicle remains consistent.

The Panther 11’s beam is crowned by a neutral 5000 Kelvin color temperature that maximizes the driving experience and visibility. Neutral color temperature is optimal for road traffic, as it makes it easier to observe terrain and obstacles, and it does not impair resolution by distorting the colors of objects visible in front. In addition, neutral color temperature is less dazzling, for example from snow cover or in fog and rain, and reduces eye strain. The 5000K color temperature is also compatible with newer cars that have LED or Xenon lights as standard, and also brings the desired brightness and sharpness alongside traditional halogen lights.

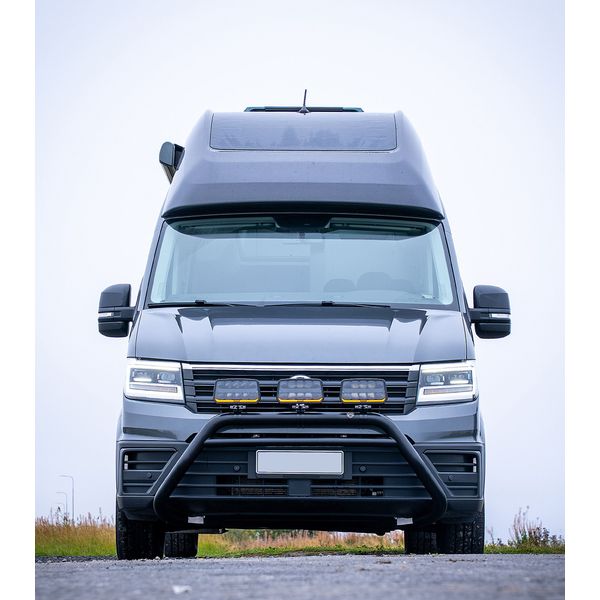

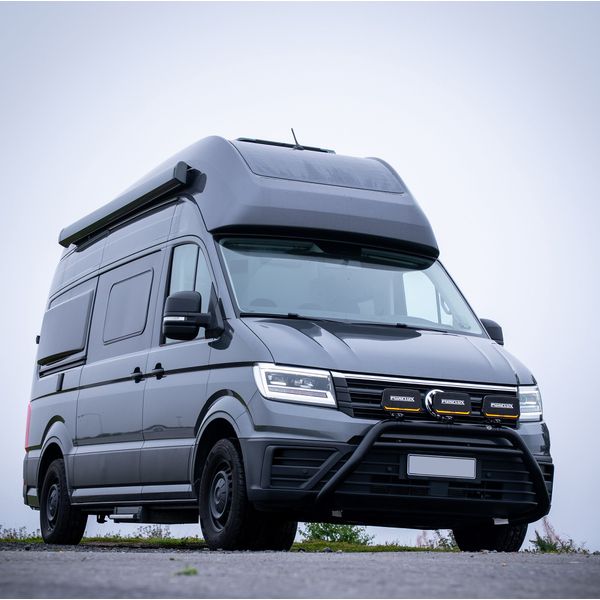

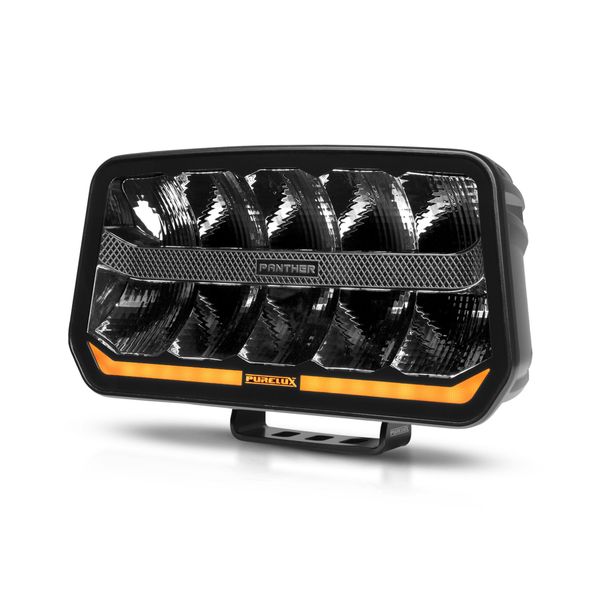

The Panther 11 looks different from what you are used to, and its unique design, the orange or white parking light that runs spectacularly along the bottom edge of the lens, and the dark optics give it a unique overall look. The brazenly non-standard appearance combined with the 11″ size and fierce performance make the Panther 11 an excellent addition to the equipment of heavy equipment and construction vehicles, as well as vans and SUVs. The exceptionally low reference number of the lamp (20) allows the installation of several lamps on the same vehicle without having to take your own high beams out of use, so the bravest can easily install this light cannon on passenger cars too!

“Purelux Panther series is made with uncompromising quality and top of the line performance. Every feature is finely tuned to fit any type of situation and vehicle. Don’t hesitate, ride with the Panther!” – Purelux

The light comes with a mounting foot, and installation is made easier by the 2-pole DTP connector already installed in the light’s power cable, as well as separate wires from the power cable for the parking lights, hazard warning light and hazard light synchronization. In addition, the Panther 11 also has a ready-made mounting hole for the top support bar, which enables a sturdy installation. The light comes with a stylish black stone chip guard with the Purelux logo, which reveals the parking light line, allowing the parking lights to be used even in summer, when the rest of the light is protected from flying stones and sand dust. The wide operating voltage range (9-36V) allows installation in both 12V and 24V systems. The light is radio interference-protected in accordance with the ECE R10 standard. Three-year (36-month) warranty!

Valostore’s comment: “Panther 11 is a standard-breaking addition to its manufacturer’s Panther product family. This light is designed purely for the needs of larger vehicles, in terms of its functions, appearance, light output and beam. The design of the light has taken into account the wishes of motoring professionals for a light whose beam would be optimized for roof installations and whose functions would enable the same light to be used for several different purposes without unnecessary gimmicks. Just like its little brother Panther 9, the versatile features in this model do not eat each other up, but complement them. In addition, two different color options give everyone the opportunity to create a light package that also looks good on their vehicle.”

Basic delivery content (1 pc.)
Purelux Panther 11
Mounting foot
Power cord with DTP-2 connector

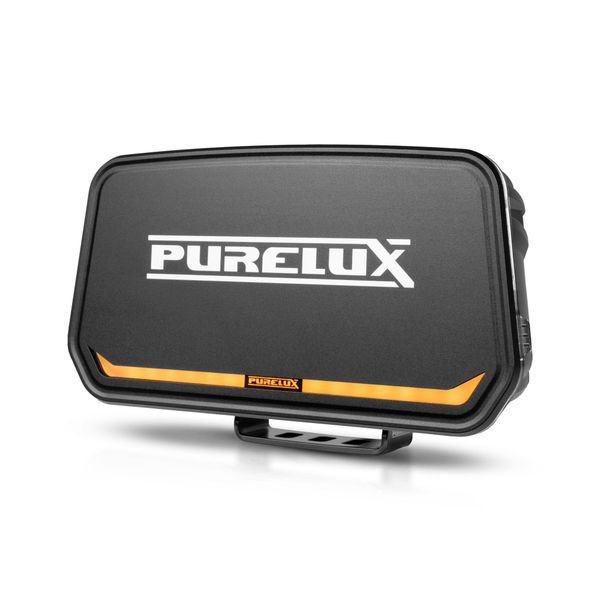

Stone chip protection, black
Connection and installation instructions (FI/SE/NO/DK)
Delivery content (2 pcs – Complete set)
2 x Basic delivery contents
Auxiliary light holder for EU license plate
Relay wiring kit Purelux Pro Serie 12V, HD DTP (1 pc. 2-output)
Support bracket, 2 pcs
Delivery content (3 pcs – Complete set)
3 x Basic delivery content
Auxiliary light holder for EU license plate Purelux HD, for 3 lights
Relay wiring kit Purelux Pro Serie 12V, HD DTP (1 pc. 3-output)
Support bracket, 4 pcs
Delivery contents (4 pcs – Complete set WRC)
4 x Basic delivery contents
Auxiliary light holder Purelux WRC, 4 lights
Relay wiring kit Purelux Pro Serie 12V, HD DTP (1 pc 4-output)
Stabilizer, 4 pcs
Delivery contents (5 pcs – Complete set WRC)
5 x Basic delivery contents
Auxiliary light holder “Rally 5”, 5 lights
Relay wiring kit Purelux Pro Series 12V, HD DTP, (1 x 1-output, 1 x 4-output)
Stabilizer, 6 pcs
Delivery contents (6 pcs – Complete set WRC)
6 x Basic delivery contents
Auxiliary light holder Purelux WRC, for 6 lights (max. 230 mm)
Relay wiring kit Purelux Pro Series 12V, HD DTP, (1 x 2-output, 1 x 4-output)
Stabilizer, 6 pcs
Specifications
Brand and model: Purelux Panther 11
Intended use: As an additional light in cars / work machines
Operating voltage: 9-36 V (DC)
Reference number: 20
Rated power: 170 W
Power consumption measured by the light bulb
Purelux PowerBoost®: 6.92A @ 24V
Road mode: 0.99A @ 24V
Warning light: 1.45A @ 24V
Power measured by the light bulb
Purelux PowerBoost®: 166W
Road mode: 23.7 W
Warning light: 35 W
Parking lights: 2 W
Luminous efficacy measured by Valostore: 10811 lm (Purelux PowerBoost®) / 2205 lm (Road mode)
Range measured by the light tower: 751 m @ 1 lux / 1502 m @ 0.25 lux (Purelux PowerBoost®)
Range measured by the beacon: 340 m @ 1 lux / 680 m @ 0.25 lux (Road mode)
Range with multiple lights, measured (PowerBoost® / E-approved, @ 1 lux):
With two: 1062 m / 395 m (@ 1 lux)
With three: 1301 m / 483 m (@ 1 lux)
With four: 1502 m / 558 m (@ 1 lux)
Manufacturer’s stated color temperature: 5000 K
Measured by Valostore: 5010 K
Mounting: Mounting foot
Connector: DTP-2
Parking lights and hazard warning lights + separate wires
Cable length: approx. 100 cm
Dimensions: 244 x 132 x 77 mm (Width x Height x Depth)
Height with mounting foot:
Weight: 1624g
IP rating: IP69K
Approvals: ECE R10, R149, R65, CE, RoHS
Road traffic approval does not apply to Purelux PowerBoost® mode
Change: There is a ready place for the support rail in the light
Warranty: 36 months
Importer: Handshake.fi
Installation guide

Coupling

DTP connector: Additional light
Yellow: Orange parking light
White: White parking light
Green: Warning light (R65)
Gray: Hazard light synchronization / hazard light mode switching

Changing the power mode with UI technology: The light will turn on in PowerBoost mode when first used. To change the power mode, turn the light off, then turn it on for two seconds, and turn the light off and on twice within 1.5 seconds to change the power mode. Repeat to change the power mode again.

Note! An instructional video on how to change the power mode can be found at the bottom of this page!

Synchronization and warning light functions:

Warning light: Connect the green wire to power (+)
Synchronization: Synchronize multiple warning lights by connecting the gray wires together
Warning light pattern: Connect the gray wire to power (+) for less than 1 second, the pattern will change
Reset: Connect the gray wire to power (+) for at least 3 seconds to return directly to the first warning light pattern

You can find the manufacturer’s connection and installation instructions by clicking here.
