Auxiliary light PURELUX Panther 7 – Round / 18 cm / 128W / Ref. 20

Description

Exceptionally stylish, 7″ additional light with a wonderful combination light beam and two different power modes, which also includes a two-color parking light. The perfect light to tame the half-yearly darkness! Measured light output 7783 lm, range 648 m @ 1 lux.

PRODUCT DESCRIPTION – DELIVERY CONTENTS – TECHNICAL DATA

PowerBoost® technology
A great, wide combination beam
First choice for bow installations
7783 lumens, 648 meters (@ 1 lux)
Optimal 5000K color temperature

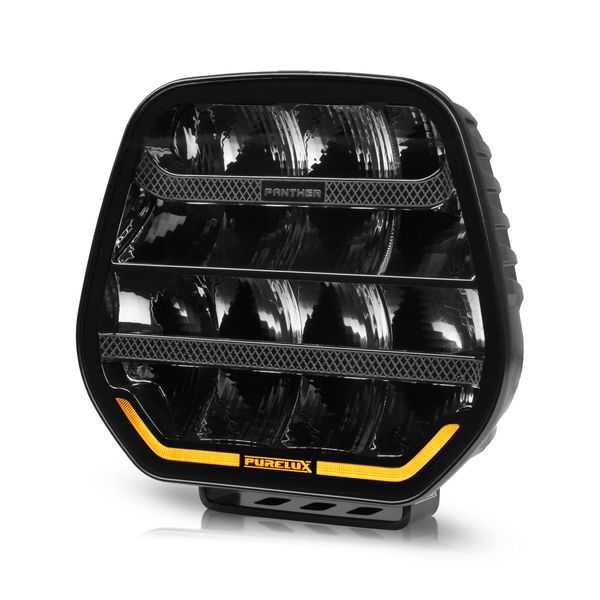

Stylish two-color parking light
Frameless Lexa polycarbonate lens

The Purelux Panther 7 is a shockingly powerful and spectacular auxiliary light that shakes up the market of round auxiliary lights with a fierce performance, one of the best combination light beams on the market and a unique appearance. The light has two different power modes, i.e. it can be switched on either the more moderate power mode approved for road traffic or the PowerBoost® mode that releases unlimited light output. The innovative user interface integrated into the light allows you to change the power modes easily and quickly while driving, so there is no need to make any additional connections!

In PowerBoost® mode, the measured light output of just one light is 7,783 lumens and the range reaches up to 648 meters (1 lux), and when two or more lights are installed side by side, in the darkness of the night, the unnoticeable row of black panthers turns into a light phenomenon that signals the way ahead in an unprecedented way. The attention-grabbing design, stylish details and the orange or white parking light at the bottom of the light make the Panther 7 an eye-catching revelation, and thanks to the stylish black color, it fits neatly into any vehicle.

Note! The same lamp is also available with a white frame: Purelux Panther 7 White

“Notorious Panther performance”

Unlike usual, there is no need to connect or disconnect any extra wire to activate the lamp’s different power modes, instead switching between PowerBoost® and road traffic mode is possible using a unique selection integrated into the user interface. The power mode can therefore be changed easily and quickly, even while driving.

Note! You can clearly see the difference between Purelux PowerBoost® and road traffic mode – PowerBoost® mode is significantly more efficient and should not be used when driving in normal road traffic, only off-road.

The Panther 7’s light beam consists of a rectangular wide main beam, which is a perfect combination of both range and width. The light beam opens right from the bow and illuminates the whole way from side to side, while the brighter main spot in the middle of the beam directs the light far ahead. In the vertical direction, the light beam is softly delimited, as usual from other lights of the Panther series, thanks to which the light is not lost in the sky and a ball of light does not form in front of the bow. However, the height of the cone is optimized to be sufficient for hilly terrain and roof installations of heavy equipment.

In addition to the precisely finished light beam, a feature that significantly improves the driving experience is the light’s neutral color temperature of 5000 Kelvin. Neutral color temperature is optimal for road traffic, as it facilitates the observation of terrain shapes and obstacles and does not distort the color of the object. In addition, it dazzles, e.g. less cool tones from snow cover or in fog and rain, and reduces the strain on the eyes. The 5000K color temperature also suits newer cars with LED or Xenon lights as standard, and brings the desired brightness and sharpness even alongside traditional halogen lights.

The appearance of Panther 7 differs from the usual, and its unique design, the orange or white parking light running spectacularly at the bottom of the lens, and the dark optics give the lamp a unique look. The brazenly non-standard appearance combined with the 7″ size and ferocious performance make the Panther 7 an excellent choice for the front of ordinary cars, SUVs and vans. The light’s low reference number (20) makes it possible to install several lights in the same vehicle without having to remove the car’s own main lights.

“Purelux Panther series is made with uncompromising quality and top of the line performance. Every feature is finely tuned to fit any type of situation and vehicle. Don’t hesitate, ride with the Panther!” – Purelux

The light is supplied with a mounting foot, and installation is facilitated by the 2-pole DT connector already in place in the light’s power cord and the separate wires from the power cord to the parking lights. Unlike many other additional lights of the same size, the Panther 7 also has a ready-made mounting hole for the upper support bar, which enables a sturdy installation. The wide operating voltage range (9-36V) enables installation in both 12V and 24V systems. The lamp is protected against radio interference in accordance with the ECE R10 standard. Three-year (36 months) warranty!

Valostore’s comment: “Panther 7 is a much-needed round addition to Purelux’s Panther product family. We’ve been waiting for this light for a couple of seasons, and now it’s finally here! We’re especially excited that the Panthers’ ferocious power and high-quality light beam have been brought into a round shape – of course from mass with minor modifications. There are both 7″ and 9″ versions of the same light, so this light will do the trick practically all motorists. In addition, two different color options give everyone the opportunity to create a lighting system that suits their appearance as well.”

Basic delivery content (1 pc.)
Purelux Panther 7
Mounting leg
Power cord with DT-2 connector
Connection and installation instructions (FI/SE/NO/DK)
Delivery contents (2 pcs – Complete set)
2 x Basic delivery contents
Auxiliary light holder for the EU license plate
Relay wiring kit Purelux Pro Series 12V, DT-2 (1 pc 2-output)
Stabilizer, 2 pcs
Delivery contents (3 pcs – Complete set)
3 x Basic delivery contents
Auxiliary light holder for EU license plate, for 3 lights
Relay wiring kit Purelux Pro Serie 12V, DT-2 (1 pc 3-output)
Stabilizer, 4 pcs
Delivery contents (4 pcs – Complete set)
4 x Basic delivery contents
Auxiliary light holder Purelux HD, for 4 lights
Relay wiring kit Purelux Pro Serie 12V, DT-2 (2 pcs 2-output)
Stabilizer, 4 pcs
Delivery contents (4 pcs – Complete set WRC)
4 x Basic delivery contents
Auxiliary light holder Purelux WRC, for 4 lights
Relay wiring kit Purelux Pro Serie 12V, DT-2 (2 pcs 2-output)
Stabilizer, 4 pcs
Delivery contents (5 pcs – Complete set WRC)
5 x Basic delivery contents
Auxiliary light holder Purelux WRC, for 5 lights
Relay wiring kit Purelux Pro Serie 12V, DT-2 (1 pc 2-output, 1 pc 3-output)
Stabilizer, 6 pcs
Delivery contents (6 pcs – Complete set WRC)
6 x Basic delivery contents
Auxiliary light holder Purelux WRC, for 6 lights (max. 230 mm)
Relay wiring kit Purelux Pro Serie 12V, DT-2 (1 pc 2-output, 1 pc 4-output)
Stabilizer, 6 pcs
Specifications
Brand and model: Purelux Panther 7
Intended use: As an auxiliary light in cars / work machines
Operating voltage: 9-36 V (DC)
Reference number: 20
Rated power: 128 W
Power consumption measured by Valostore
Purelux PowerBoost®: 5.09A @ 24V
Road traffic mode: 1.33A @ 24V
Power measured by Valostore
Purelux PowerBoost®: 122.1 W
Road mode: 32 W
Light output measured by Valostore
Purelux PowerBoost®: 7783 lm
Road traffic mode: 2640 lm
Range measured by Valostore: 676 m @ 1 lux / 1352 m @ 0.25 lux (Purelux PowerBoost®)
Range measured by Valostore: 397 m @ 1 lux / 794 m @ 0.25 lux (Road mode)
Range with multiple lights, measured (PowerBoost® / E-mode @ 1 lux):
With two: 916 m / 561 m (@ 1 lux)
With three: 1122 m / 688 m (@ 1 lux)
With four: 1296 m / 794 m (@ 1 lux)
Manufacturer’s stated color temperature: 5000 K
Measured by Valostore: 4993 K
Mounting: Mounting foot
Connector: DT-2
The parking lights + wires are separate
Cable length: approx. 100 cm
Dimensions: 178 x 158 x 61 mm (Width x Height x Depth)
Height with mounting leg: 169 mm
Weight: 1160 g
IP rating: IP69K
Approvals: ECE R10, R148, R149, CE, RoHS
Road traffic approval does not apply to the Purelux PowerBoost® mode
Other: The light has a ready place for the support iron
Warranty: 36 months
Importer: Handshake.fi
Installation guide

Coupling

DT2 connector: Additional light
Yellow: Orange parking light
White: White parking light

Changing the power mode with UI technology: The first time the lamp is used, it lights up in PowerBoost mode. To change the power mode, turn the light off, then turn the light on for two seconds, and turn the light off and on 2 times in 1.5 seconds to change the power mode. Repeat to change the power mode again.

You can find the manufacturer’s connection and installation instructions by clicking here.
