Auxiliary light STRANDS Big Energy 9″ – Round / 22 cm / 126W / Ref. 50

Description

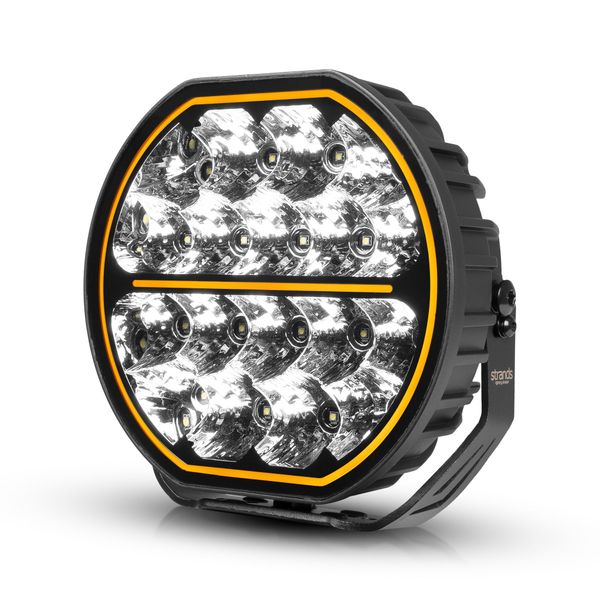

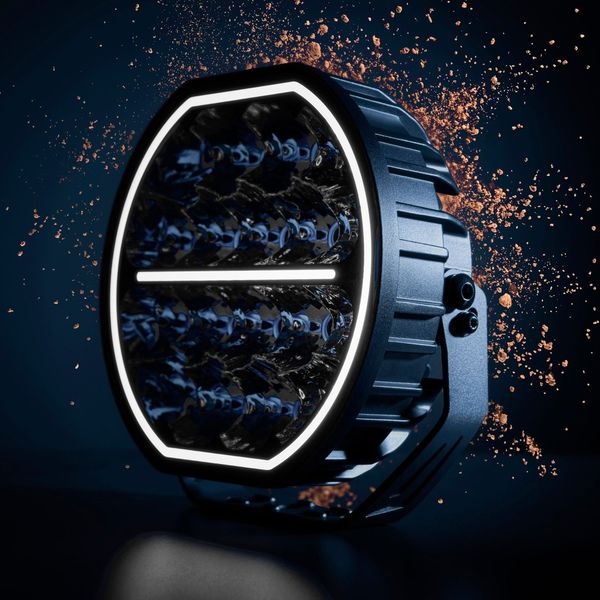

Stylish and slender 9″ auxiliary light, which is equipped, among other things, with an orange and white parking light and a wide combination light beam. Light output 11900 lm declared by the manufacturer, range 444 m @ 1 lux.

Strands Big Energy 9″ is a stylish, round auxiliary light equipped with a two-color parking light, which produces a light output of 11,908 lumens and a wide light beam that reaches almost half a kilometer at 1 lux, which reliably guides you through dark roads. This auxiliary light with a slim frame is easy to install even in tighter spaces, and for its size thanks to its light construction, it is also suitable for the front of smaller vehicles. According to the manufacturer, one light produces a forward range of 444 m @ 1 lux, while the reflectors also direct the light to the sides, guaranteeing optimal visibility both forward and on the sides of the road or more, both the range and the width increase even more. As the name suggests, Big Energy brings a huge amount of light power to support your vehicle’s own high beams, which illuminates the road ahead, giving the driver the freedom to focus on the most important thing of all, i.e. driving.

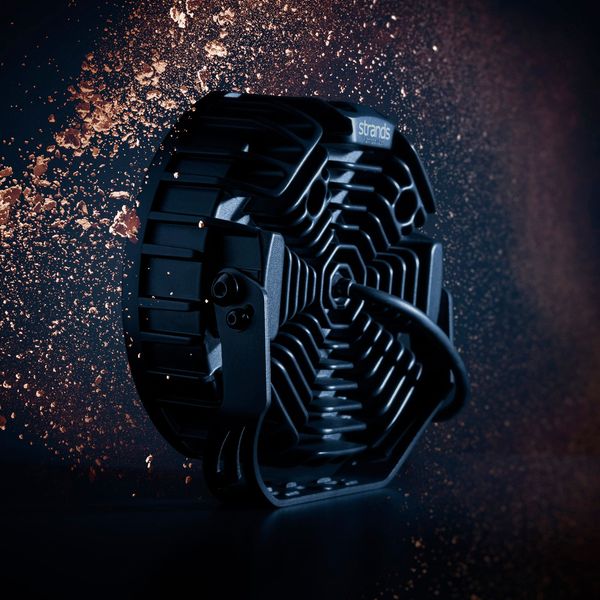

The body of the Strands Big Energy auxiliary light is made of durable aluminum and the frameless lens is made of polycarbonate. In addition, the light is protected against water and dust in accordance with the IP67/IP69K classification, so spring and autumn fog or mild winter days’ fog and half-melted road will not damage the lights under any circumstances, even if the lights are installed on the front of a lower vehicle. Big Energy is protected against radio interference in accordance with the ECE R10 standard and approved for road traffic in accordance with the ECE R148 and R149 standards. Three-year (36 months) warranty!

Basic delivery content
Strands Big Energy 9″
Power cord with DT4 connector, 1000 mm
Mounting base
Delivery contents (2 pcs – Complete set)
2 x Basic delivery contents
Auxiliary light holder for EU license plate, Purelux
Relay wiring kit Purelux Pro Serie 12V, DT-2, (1 pc 2-output)
Adapter cable Purelux DT4 – DT2, 2 pcs
Pair of support irons Purelux Stabilizer, 1 pc
Delivery contents (3 pcs – Complete set)
3 x Basic delivery contents
Additional light holder for EU license plate, for 3 lights
Relay wiring kit Purelux Pro Serie 12V, DT-2, (1 pc 3-output)
Adapter cable Purelux DT4 – DT2, 3 pcs
Pair of support irons Purelux Stabilizer, 2 pcs
Delivery contents (4 pcs – Complete set)
3 x Basic delivery contents
Additional light holder for EU license plate, for 4 lights
Relay wiring kit Purelux Pro Series 12V, DT-2, (1 pc 4-output)
Adapter cable Purelux DT4 – DT2, 4 pcs
Pair of support irons Purelux Stabilizer, 2 pcs

Note! The lamp’s power cord has a DT4 connector, and the wiring harness has a DT2 connector. The complete set comes with DT4-DT2 adapter cables that fit in between, but the parking lights are not automatically made to work with the wiring kit, but you have to connect them yourself if you want.

Technical information
Brand and model: Strands Big Energy 9″
Intended use: As auxiliary light in cars / heavy vehicles / work machines
Operating voltage: 10-32 V
Reference number: 50
Power consumption stated by the manufacturer: 9.33 A @ 12V / 4.375 @ 24V
Calculated power: 126 W
Power declared by the manufacturer: 112 W @ 12V / 105 W @ 24V
Theoretical light output: 13500 lm
Stated by the manufacturer: 11908 lm

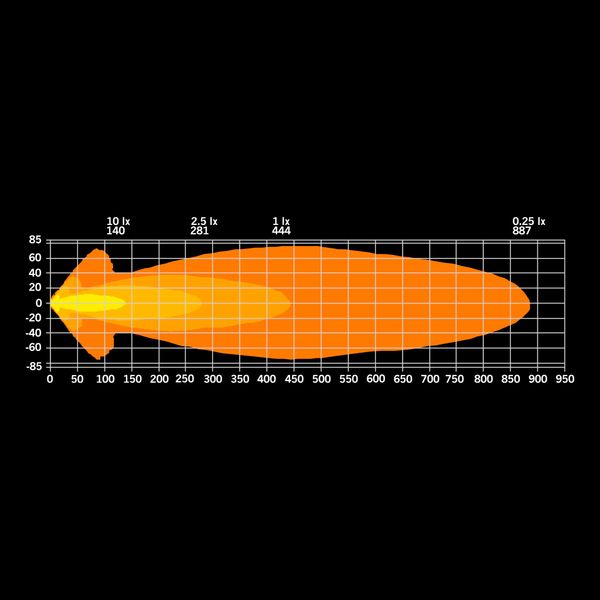

Range declared by the manufacturer: 444 m @ 1 lux / 888 m @ 0.25 lux
Color temperature stated by the manufacturer: 6500 K
Mounting: Mounting base
Connector: Deutsch DT4
Cable length: approx. 100 cm
Dimensions: 216 x 199 x 76 mm (Width x Height x Depth)
Height with foot: 213.7 mm
IP rating: IP68 / IP69K
Operating temperature: -35°C to +60°C
Approvals: EMC: ECE R10, R148, R149
Warranty: 36 months
Installation guide

You can find the manufacturer’s installation instructions (EN) here: Strands Big Energy 9″ manual (opens in a new window).
