Auxiliary light PURELUX Panther 5 – Round / 15 cm / 90W / Ref. 12.5

Description

A powerful additional light with a unique design, a compact 5″ body and a wide combination light beam, which also has two different power modes and a two-color parking light. The low reference number (12.5) makes it possible to install several lights in the same vehicle! Measured light output 6560 lm, range 472 m @ 1 lux.

⭐️ WORLD CLASS PANTHER DESIGN ⭐️
⭐️SUPERIOR LIGHT PERFORMANCE ⭐️
BUY WHOLE SERIES

PRODUCT DESCRIPTION – DELIVERY CONTENTS – TECHNICAL DATA

PowerBoost® technology
Super compact body!
A wonderful, long-handled compound bow
6560 lumens, 472 meters (@ 1 lux)
Optimal 5000K color temperature
Stylish two-color parking light
Frameless Lexa polycarbonate lens

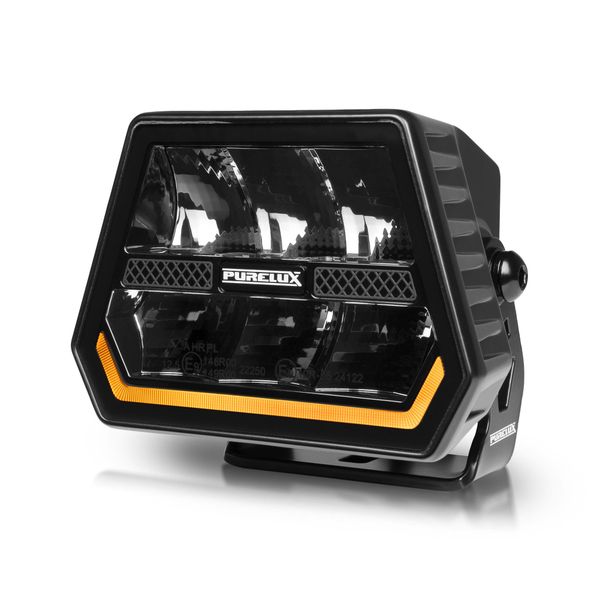

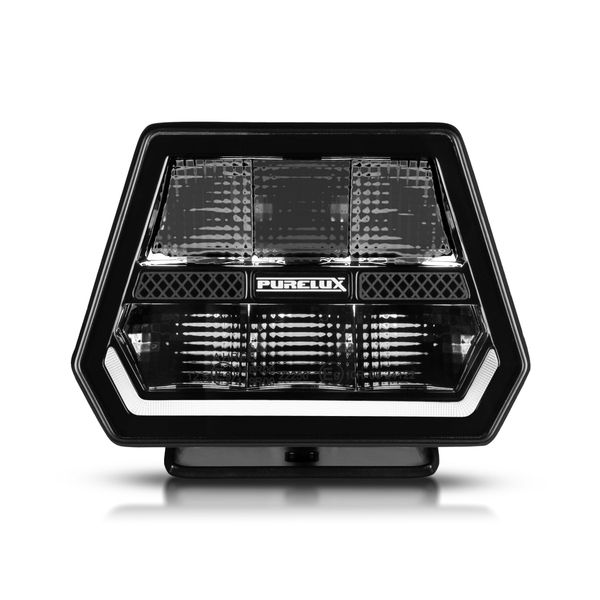

The Purelux Panther 5 is a powerful 5″ additional light representing a new generation of design, which fills a gaping gap in the market with style! The highly efficient Panther 5 is equipped with, among other things, a wide combination light beam, orange and white parking light, a completely unique appearance and an exceptionally low reference number (12.5). In addition the light has two power modes, the more moderate of which is approved for road traffic, while the PowerBoost® mode, which releases full power, is intended for off-road traffic. , packed in a frame less than 15 cm wide.

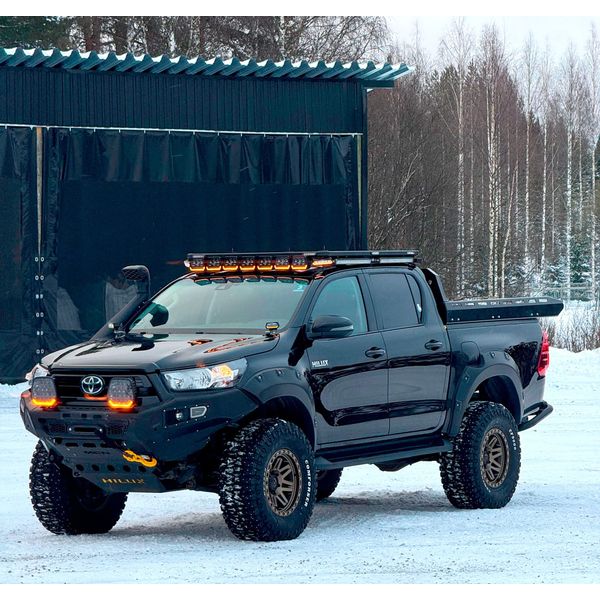

Panther 5’s small size, low reference and exceptional frame also allow for more special installations. For example, depending on the width of the car, you can build a stylish light array with 6-10 lights on the roof of an SUV. The body of the Panther 5 is not coincidentally the same as the Panther Alpha 90 work light, but the solution also enables that when assembling the light panel, the outermost lights can be replaced with a completely identical-looking but very wide-beam illuminator. This provides even more light to the vehicle’s immediate area and sides for off-road use. With six lights the range is 1156 m, with eight 1335 m and with ten 1493 m @ 1 lux.

The light beam of the Panther 5 consists of a rectangular wide main beam, where the wide spot in the middle directs the light far ahead, up to almost half a kilometer. In the vertical direction, the light beam is softly delimited, as usual from other lights of the Panther series, thanks to which the light is not drowned in the sky and a dazzling ball of light does not form in front of the bow. However, the height of the light beam is optimized to be sufficient even for hilly terrain and ceiling installations.

In addition to the precisely finished light beam, a feature that significantly improves the driving experience is the light’s neutral color temperature of 5000 Kelvin. Neutral color temperature is optimal for road traffic, as it facilitates the observation of terrain shapes and obstacles and does not distort the color of the object. In addition, it dazzles less cool tones from e.g. snow cover or in fog and rain, and reduces the strain on the eyes. The boldly non-standard appearance combined with the 5″ size and ferocious performance make the Panther 5 an excellent choice for ATVs, regular cars, SUVs and vans. The light’s low reference number (12.5) allows several lights to be installed in the same vehicle without having to remove the car’s own high beams.

“Notorious Panther performance”

“Purelux Panther series is made with uncompromising quality and top of the line performance. Every feature is finely tuned to fit any type of situation and vehicle. Don’t hesitate, ride with the Panther!” – Purelux

The light comes with a mounting bracket, and installation is made easier by the 2-pole DT connector already in place in the light’s power cable and separate wires from the power cable to the parking lights. Complete sets come with ready-made support bars that can be attached to the light’s mounting bracket’s mounting bolt (the hole in the support bars must be slightly enlarged so that the light’s mounting bolt can fit through it). Of course, the use of support bars is not necessary if the installation can otherwise be carried out securely. The wide operating voltage range (9-36V) enables installation in both 12V and 24V systems. The light is radio interference-protected in accordance with the ECE R10 standard. Three-year (36 month) warranty!

Two stone impact protectors are available for the lamp, yellow and black. With yellow, the tone of the light can be changed to yellow, which improves visibility especially in bad conditions, such as snow, heavy fog or rain.

Valostore’s comment: “Panther 5 is a much-needed small addition to Purelux’s Panther product family. What makes this light special is, for example, that the Panthers’ wild power and high-quality beam have been brought to a small 5″ size and, of course, with a style that stands out from the crowd! There is no other similar light on the market, even if there is demand, so Purelux’s product development team has decided to answer the call!”

Basic delivery content (1 pc.)
Purelux Panther 5
Mounting leg
Power cord with DT2 connector
Connection and installation instructions (FI/SE/NO/DK)
Delivery contents (2 pcs – Complete set)
2 x Basic delivery contents
Additional light holder for the EU license plate
Relay wiring kit Purelux Pro Series 12V, DT-2 (1 pc 2-output)
Stabilizer, 2 pcs
Note! The support brackets can be attached to the mounting bolt of the light mounting leg
Delivery contents (3 pcs – Complete set)
3 x Basic delivery contents
Additional light holder for EU license plate, for 3 lights
Relay wiring kit Purelux Pro Series 12V, DT-2 (1 pc 3-output)
Stabilizer, 4 pcs

Note! The support brackets can be attached to the mounting bolt of the light mounting leg
Delivery contents (4 pcs – Complete set)
4 x Basic delivery contents
Additional light holder for EU license plate
Relay wiring kit Purelux Pro Series 12V, DT-2 (1 pc 4 outputs)
Stabilizer, 4 pcs

Note! The support brackets can be attached to the mounting bolt of the light mounting leg
Delivery contents (4 pcs – Complete set WRC)
4 x Basic delivery contents
Additional light stand Purelux WRC, for 4 lights
Relay wiring kit Purelux Pro Series 12V, DT-2 (1 pc 4 outputs)
Stabilizer, 4 pcs

Note! The support brackets can be attached to the mounting bolt of the light mounting leg
Delivery contents (5 pcs – Complete set WRC)
5 x Basic delivery contents
Additional light stand Purelux WRC, for 5 lights
Relay wiring kit Purelux Pro Serie 12V, DT-2 (1 pc 4-output)
Relay wiring kit Purelux Pro Serie 12V, DT-2 (1 pc 1-output)
Stabilizer, 6 pcs
Note! The support brackets can be attached to the mounting bolt of the light mounting leg
Delivery contents (6 pcs – Complete set WRC)
6 x Basic delivery contents
Additional light stand Purelux WRC, for 6 lights
Relay wiring kit Purelux Pro Serie 12V, DT-2 (1 pc 4-output)
Relay wiring kit Purelux Pro Serie 12V, DT-2 (1 pc 2-output)
Stabilizer, 6 pcs
Note! The support brackets can be attached to the mounting bolt of the light mounting leg
Specifications
Brand and model: Purelux Panther 5
Purpose: As an additional light in cars / work machines
Operating voltage: 9-36 V (DC)
Reference number: 12.5
Calculated power: 90 W
Power consumption measured by Valostore
Purelux PowerBoost®: 3.18A @ 24V
Road mode: 1.125A @ 24V
Parking lights: 0.26A @ 24V
Power measured by Valostore
Purelux PowerBoost®: 76.4 W @ 24V
Road mode: 27W @ 24V
Parking lights: 6.2 W @ 24V
Light output measured by Valostore: 6560 lm (Purelux PowerBoost®) / 2830 lm (Road traffic mode)
Range measured by Valostore: 472 m @ 1 lux / 944 m @ 0.25 lux (Purelux PowerBoost®)
Range measured by Valostore: 311 m @ 1 lux / 622 m @ 0.25 lux (Traffic mode)
Range with more lights, measured (PowerBoost® / E-approved, @ 1 lux):
With two: 668 m / 440 m (@ 1 lux)
With three: 818 m / 539 m (@ 1 lux)
With four: 944 m / 622 m (@ 1 lux)
With six: 1156 m / 762 m (@ 1 lux)
Color temperature stated by the manufacturer: 5000 K
Measured by Valostore: 4985 K
Mounting: Mounting leg
Connector: DT2
The parking lights + wires are separate
Cable length: approx. 50 cm
Dimensions: 147 x 104 x 97 mm (Width x Height x Depth)
Height with mounting foot: 121 mm
Weight: 1222 g
IP rating: IP69K
Approvals: ECE R10, R148, R149*, CISPR25 Class 3
*Road traffic approval does not apply to the Purelux PowerBoost® mode
Other: The light has a ready place for the support iron
Warranty: 36 months
Importer: Handshake.fi
Installation guide

Coupling

DT2 connector: Additional light connection (PowerBoost®)
DT2 connector + Green: Power mode approved for road traffic
Yellow: Orange parking light
White: White parking light

When the additional light is connected using the DT-2 connector, it lights up in PowerBoost® mode. Power mode approved for road traffic can be switched on by connecting the black wire to ground and the green wire to power.

You can find the manufacturer’s connection and installation instructions by clicking here.
