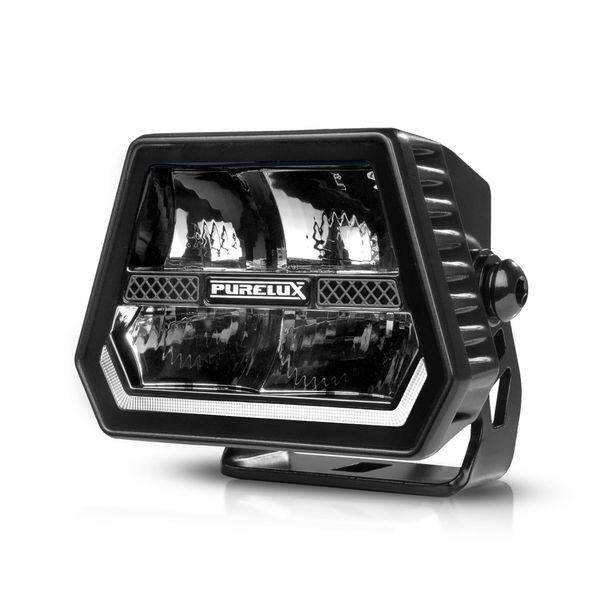

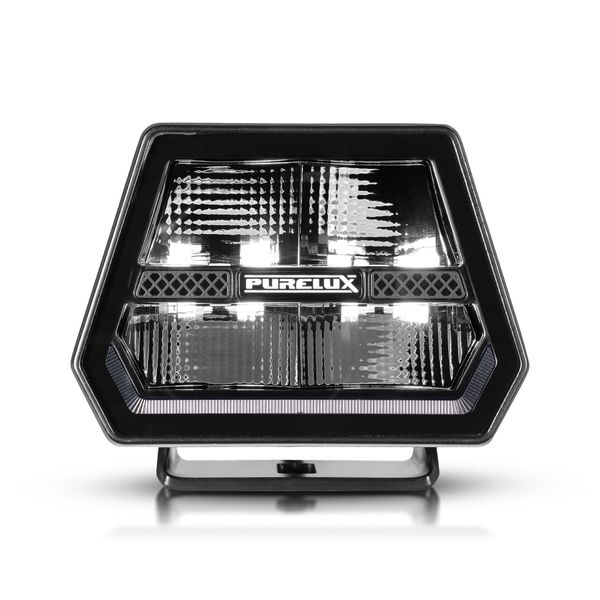

Auxiliary light PURELUX Panther Alpha 60 – 12 cm / 60W / Spot

Description

A work light for challenging conditions equipped with auxiliary light approval, which includes e.g. two-color parking/extreme light, narrow and far-reaching light beam and neutral 5000K color temperature. Exceptionally stylish design! Declared light output 3500 lm, range 322 m @ 1 lux. IP69K rating.

Purelux Panther Alpha is a spectacular new generation work light series designed for challenging conditions. Alpha lamps bring something completely new to the market with a unique design and a two-color parking/extreme light. Unlike other Alpha series lights, the Alpha 60 Spot is also equipped with road traffic approval, which means it can be used as an auxiliary light in any vehicle. The lamp produces a light output of 3500 lumens, with a measured range of 322 @ 1 lux. As the name suggests, the Alpha 60 Spot forms a spot-like light beam, which together with the R149 road traffic approval makes it an excellent light to be installed in front of the vehicle. Thanks to the advanced reflector technology, the light pattern is softly delimited in the vertical direction, so that all the light output can be directed straight ahead. Because of its size and power, the Panther Alpha 60 Spot is an excellent choice for e.g. transport equipment, construction machinery, plow equipment, SUVs and practically all applications where a work light requires a compact size and a long-range beam.

Despite its name, the Alpha 60 Spot beam is significantly different from the traditional narrow spot beam. It is vertically delineated to reduce glare, and in addition, the cone has a different width at the top and bottom of the cone. The idea behind the solution is simple, but ingenious: at the bottom, the light spreads more widely in the vicinity of the vehicle, and the upper edge of the beam, which is directed further away, in turn, gives the beam a range that is needed in many situations. In addition to the excellent beam, the Panther Alpha 60 Spot is equipped with a neutral 5000K color temperature, which is the optimal choice for road traffic use as well as machine working lights. 5000K color temperature maximizes sharpness and accuracy, making it much easier to detect terrain shapes and obstacles .

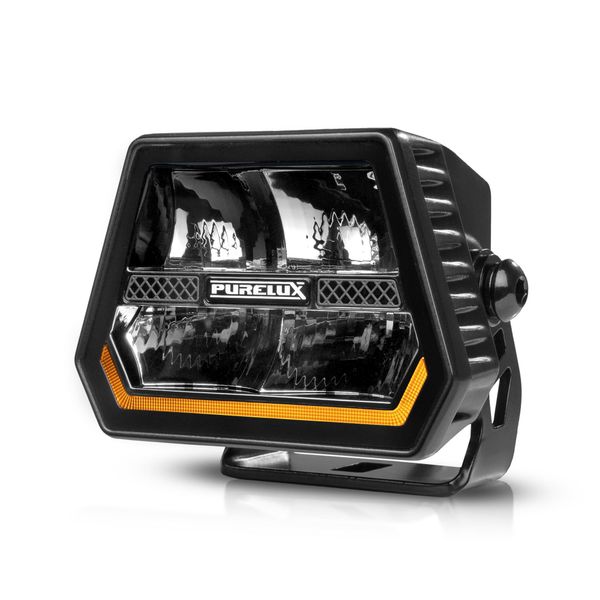

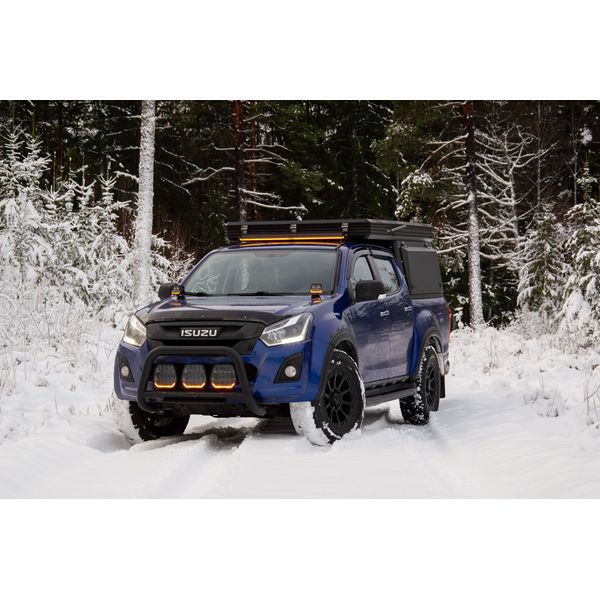

In addition to excellent lighting properties, Panther Alpha lights are also extremely stylish, and their unique design language is completely different from other work lights on the market. The great design combined with the dark profile and the orange or red parking light at the bottom of the frameless lens make the Alpha lights a unique addition to any vehicle. In addition, these lamps have been created to withstand challenging conditions, as evidenced by e.g. their highest possible tightness rating (IP69K), a frame made of durable aluminum and a lens made of practically unbreakable polycarbonate. The lights also have an intelligent temperature regulation system, which prevents overheating even during long working days and guarantees safe and worry-free working even during seasonal work. Wide operating voltage (9-36V) enables installation in both 12V and 24V systems.

The lights of the Panther Alpha series have a DT-4 connector already integrated into the power cord, which makes installation easier. The counterpart of the connector is also supplied. Panther Alpha 60 is protected against radio interference according to R10 and CISPR25 Class 3 classifications. Three-year (36 months) warranty!

NOTE! Its also possible to make the position light strobe like a warning light with this strobe controller: Purelux Strobe Controller.

Models of Panther Alpha series
Purelux Panther Alpha 20, 20W, Wide
Purelux Panther Alpha 20, 20W, Spot
Purelux Panther Alpha 30, 30W, Wide
Purelux Panther Alpha 60, 60W, Wide
Purelux Panther Alpha 60, 60W, Spot
Purelux Panther Alpha 90, 90W, Wide
Basic delivery content
Purelux Panther Alpha 60 Spot
Sturdy mounting leg
Fixing bolt
Power cable with DT-4 connector, 50 cm
The counterpart of the connector
Connection and installation instructions (EN, FI, SE, NO, DK)
Delivery contents (2 pcs – Complete set)
2 x Basic delivery contents
Additional light holder for the EU license plate
Relay wiring kit Purelux Pro Series 12V, DT-2 (1 pc 2-outputs)
Adapter Purelux DT-4 – DT-2, 15 cm, 2 pcs
Delivery contents (3 pcs – Complete set)
3 x Basic delivery contents
Additional light holder for EU license plate, for 3 lights
Relay wiring kit Purelux Pro Series 12V, DT-2 (1 pc 3-outputs)
Adapter Purelux DT-4 – DT-2, 15 cm, 3 pcs
Delivery contents (4 pcs – Complete set)
4 x Basic delivery contents
Additional light holder for EU license plate
Relay wiring kit Purelux Pro Series 12V, DT-2 (1 pc 4 outputs)
Adapter Purelux DT-4 – DT-2, 15 cm, 4 pcs

Note! The light’s power cable has a DT4 connector, and the wiring harness has a DT2 connector. The complete set includes DT4-DT2 adapter cables to fit in between, but the wiring harness does not automatically allow the parking lights to work, and you have to connect them yourself if you want to.

Note! You can find scratch shields (sold separately) for the light from here: Scratch Shield Purelux Panther Alpha 60

Technical information
Brand and model: Purelux Panther Alpha 60 Spot
Purpose: As a work light in work machines, heavy equipment and cars
Operating voltage: 9-36V
Power consumption measured by Valostore
Work light: 1.7A @ 24V
Parking light: 0.17A @ 24V
Theoretical power declared by the manufacturer: 60 W
Power measured by Valostore
Work light: 40.8 W
Parking light: 4.1 W
Light output stated by the manufacturer: 3500 lm
Measured by Valostore: 3448 lm
Range measured by Valostore: 322 m @ 1 lux / 644 m @ 0.25 lux
Color temperature stated by the manufacturer: 5000 K
Measured by Valostore: 5014 K
Mounting: Mounting base
Connector: DT-4
Cable length: 50 cm
Dimensions: 116 x 82 x 77 mm (Width x Height x Depth)
Height with foot: 96 mm
Weight: 700 g
IP rating: IP69K
Operating temperature: -40°C to +60°C
Approvals: EMC: ECE: R10, R149, CISPR25 Class 3, CE, RoHS
Warranty: 36 months
Installation guide

You can find the manufacturer’s connection and installation instructions (FI/SE/NO/DK/EN) by clicking here.
