Relay wiring kit PURELUX Pro Serie 12V, DT-2

Description

Purelux ProSerie relay wiring kit for installing Purelux additional lights, for example. Available with 1-4 DT2 connectors. Contains everything you need to connect additional lights! Suitable for 12V voltage.

NOTE! The Purelux relay wiring harness is also suitable for connecting additional lights other than Purelux. Our range also includes wiring harnesses with other connectors, and of course you can remove the connector from the wiring harness and connect the light directly to the wires.

The Purelux ProSerie relay wiring harness is a solution for easy and convenient installation of additional lights. This wiring harness contains everything you need to connect additional lights! Other relay wiring harnesses on the market often require additional connectors, etc. depending on the connection method, but this relay harness has everything you need. Depending on the model, the Purelux relay wiring harness can be used to install one to four high beam headlights. A wiring harness with one connector is sufficient for connecting a single light, but if you intend to add another (or more) light in parallel at some point, it is worth buying a wiring harness with at least two places, from which you can leave the extra connectors unused at first. The wiring harness is suitable for direct 12V power.

Note! Also available is a wiring harness suitable for 24V voltage: Purelux Pro Serie 24V, DT

Specifications
What: Relay wiring kit Purelux Pro Serie 12V, DT
Purpose: Connecting additional car lights
Deutsch DT connectors for 1-4 high beam
Splash-proof fuse box
The length of the wires from the relay to the lights is approx. 2 meters (so also suitable for trucks)
Suitable for both 12V voltage
Warranty: 12 months

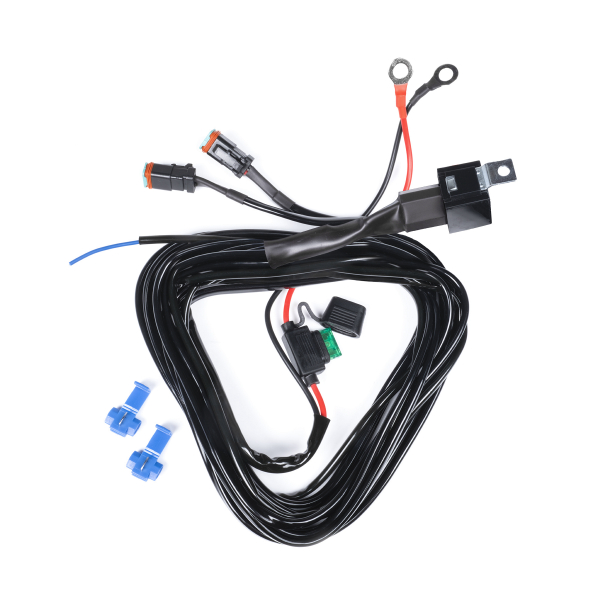

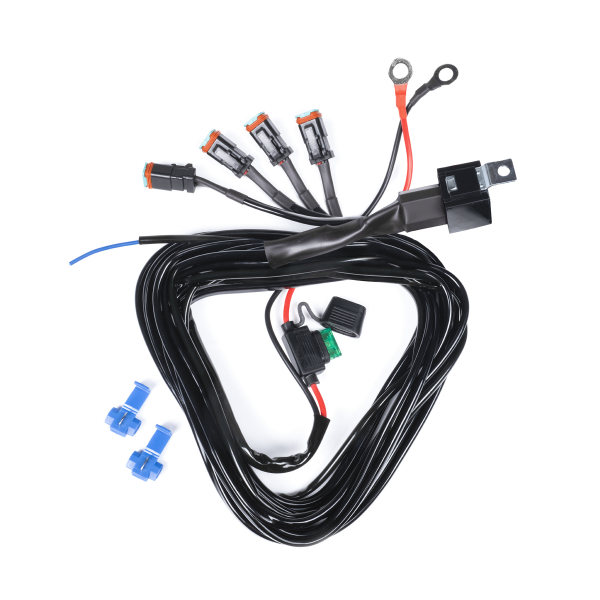

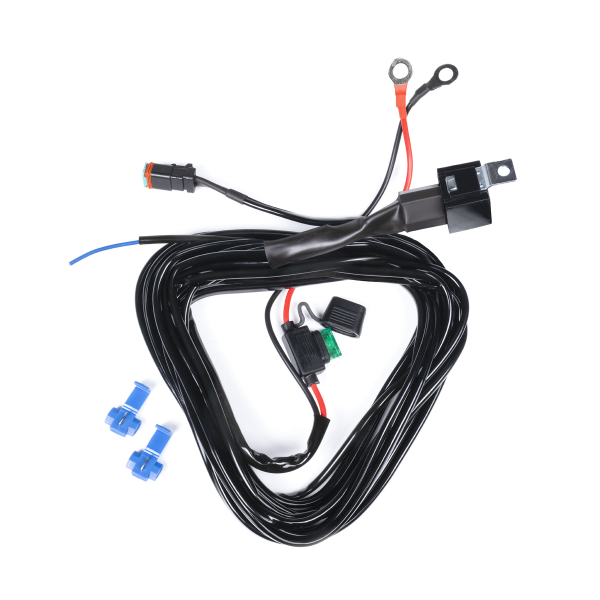

1 output 2 outputs 3 outputs 4 outputs
Max. current endurance 180W 360W (180W/connector) 400W (however max. 180W / connector) 480W (however, max. 180W / connector)
Wire thickness (from battery to relay) 16AWG / 1.18mm² 12AWG / 2.94 mm² 10AWG / 4.75 mm² 12AWG / 2.94mm²
Wire thickness (from relay to light) 16AWG / 1.18mm² 16AWG / 1.18mm² 16AWG / 1.18mm² 16AWG / 1.18mm²
Fuse 15A 30A 40A 40A
Relay 40A 12V 40A 12V 60A 12V 60A 12V

The Purelux relay wiring kit is directly Plug & Play compatible with almost all additional lights that use a DT2 connector.

Circuit diagram

=> Installation and connection instructions for additional lights
