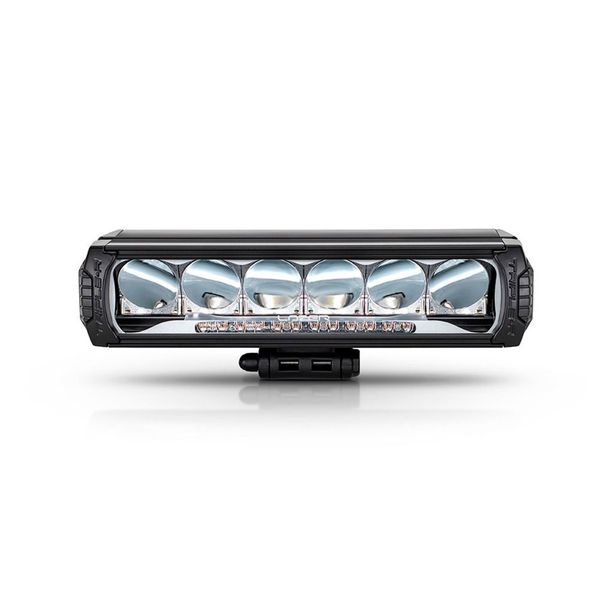

Led bar LAZER Triple-R 850 Beacon – Straight / 32 cm / 66W / Ref. 12.5

Description

A small but powerful led bar with two power modes, a spot beam, an R65-approved warning light and an orange and white parking light, especially for the needs of construction vehicles. The light has a unique Welcome mode and an extremely easy-to-use Flash-to-Dim function! Declared light output 6930 lm, range 530 m @ 1 lux.

The Lazer Triple-R 850 Beacon is the sister model of Lazer’s Triple-R 850 auxiliary light, equipped with the same great performance and an orange and white parking light. In addition, the Beacon model has been introduced with two different power modes, an R65-approved warning light, a special Welcome mode and a Flash-to-Dim function, which make this panel an excellent choice for both on-road and off-road use. The Triple-R 850 Beacon is an auxiliary light designed specifically for the needs of heavy equipment and construction vehicles, which produces a huge 6930 lumens of light output for its size in the off-road E-Boost mode and a beam of up to 530 meters (1 lux). The panel’s light pattern offers an extremely long range, ensuring that visibility does not end even on long straights. The spot of the light beam is round, like the lights of the Triple-R series, and the height of the beam is also sufficient when driving in hilly terrain or off-road. The diffused light created around the spot also illuminates roadsides.   Thanks to the small size and low reference number (Ref. 12.5), several luminaires can easily be installed in parallel, thereby further increasing both the range and width of the light beam. In addition, the 5000K color temperature reduces eye strain and makes using the lights more pleasant.

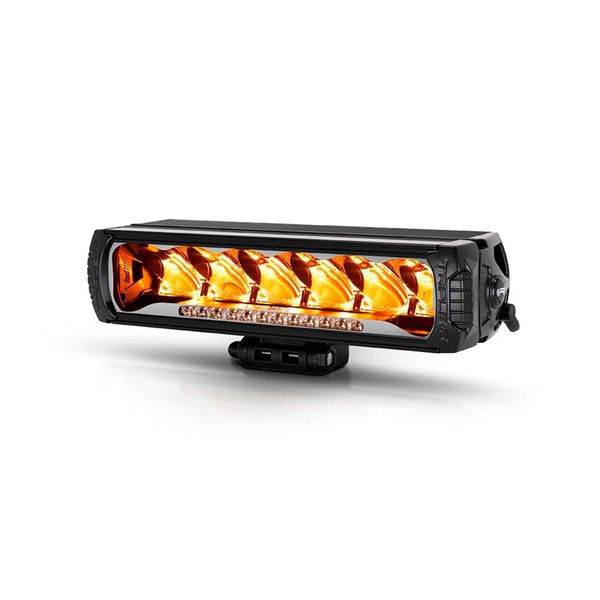

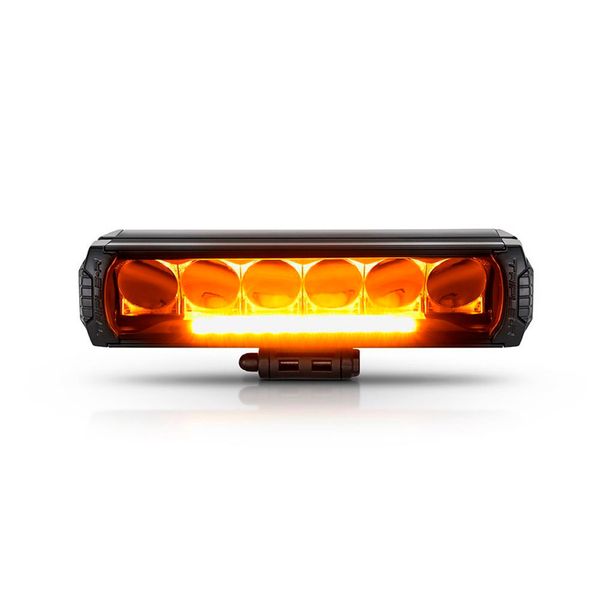

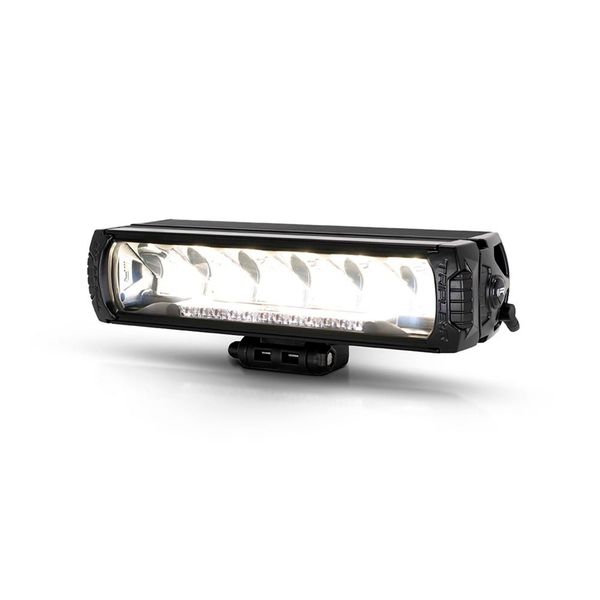

The Triple-R 850 Beacon warning light is approved for road traffic according to the ECE R65XA1 standard, so it can also be used in traffic outside construction sites. The warning light can be used, for example, in special transport, when the vehicle is moving from the road to the construction site or in traffic control. The bright orange warning light effectively illuminates the lower edge of the lens, and no one will miss it even in bright daylight. In addition to its excellent lighting properties, the Triple-R 8 50 Beacon features a parking light that stylishly illuminates the entire lens, a special Welcome mode, in which the parking light turns on and off dynamically as a greeting, and the so-called “Flash To Dim” function, which allows the driver to easily switch between road-approved and unlimited power mode while driving whenever they want.

The Triple-R 850 Beacon’s high-quality and durable aluminum frame, virtually unbreakable polycarbonate lens, and advanced GoreTex seal (allowing moisture to escape from the inside of the light) ensure that the light will not fail even in the toughest use. In addition, the light is fully protected from dust and water according to the IP68 rating, and it can withstand even momentary immersion to 1.5 meters if necessary. Five-year (60-month) warranty!

Delivery content
Lazer Triple-R 850 Beacon
Power cable with 6-pin Superseal connector, 25 cm
Width-adjustable center leg (Centre Mount, 1114K)
Connection and installation instructions (EN)
Specifications
Make and model: Lazer Triple-R 850 Beacon
Intended use: As an additional light in SUVs / construction machinery
Operating voltage: 10-32V
Reference number: – (E-Boost) / 12.5 (Road mode)
Manufacturer’s declared power: 66 W
Manufacturer’s stated current consumption: 2.75A @ 24V
Manufacturer’s declared luminous efficacy: 6930 lm (E-Boost) / 1386 lm (Road mode)
Manufacturer’s stated range:
E-Boost: 442 m @ 1 lux / 884 m @ 0.25 lux
Road traffic mode: 237 m @ 1 lux / 474 m @ 0.25 lux
Manufacturer’s stated color temperature: 5000 K
Connector: 6-pin Superseal
Cable length: approx. 20 cm
Dimensions: 322 x 73 x 105 mm (Width x Height x Depth)
Height with end feet: 73 mm
Height with width-adjustable bottom leg: 103 mm
Frame: Anodized aluminum
IP rating: IP68
Approvals: EMC: ECE R10, R65XA1, R148, R149*
*Road traffic approval does not apply to E-Boost mode
Made in the UK
Warranty: 60 months
Installation guide

You can find the manufacturer’s installation and connection guide by clicking here.
