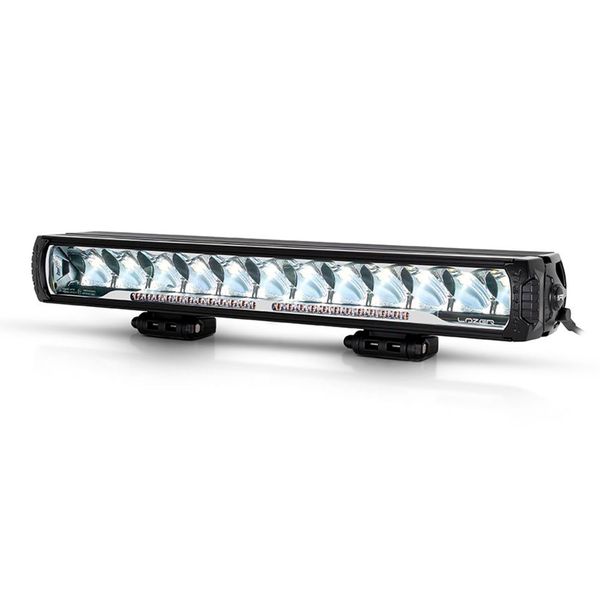

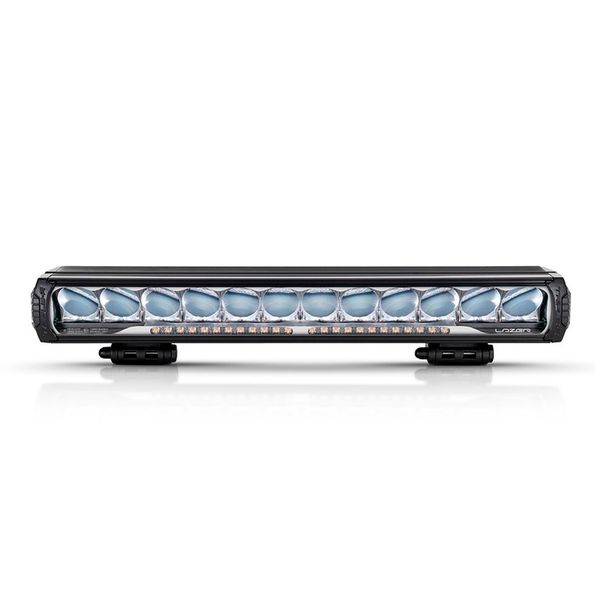

Led bar LAZER Triple-R 1250 Beacon – Straight / 59 cm / 125W / Ref. 20

Description

Auxiliary light panel with R65-approved warning light, orange and white parking light and two different power modes, especially for professional drivers. Spot and round light beam maximizes range and is also suitable for hilly terrain. Declared light output in unlimited E-Boost mode 13860 lm, range 750 m @ 1 lux. IP68 rating.

The Lazer Triple-R 1250 Beacon is an addition to the manufacturer’s Triple-R 1250 product family with an orange and white parking light, an R65-approved warning light and two different power modes. Like the other panels in the same series, the Beacon also utilizes the latest LED and reflector technology, which has allowed its performance to be tuned to its peak. In the unlimited E-Boost mode, the light produces a stunning 13860 lumens of light output, according to the manufacturer, and its pinpoint beam reaches up to 750 meters @ 1 lux. In the more moderate power mode, approved for road use, the light produces 2772 lumens of light output and a beam reaching up to 355 meters (@ 1 lux), and thanks to the low reference number (20), several led bars can be installed on the same vehicle without having to disable the car’s own high beams. This way, both light output and beam range can be maximized both on and off the road.

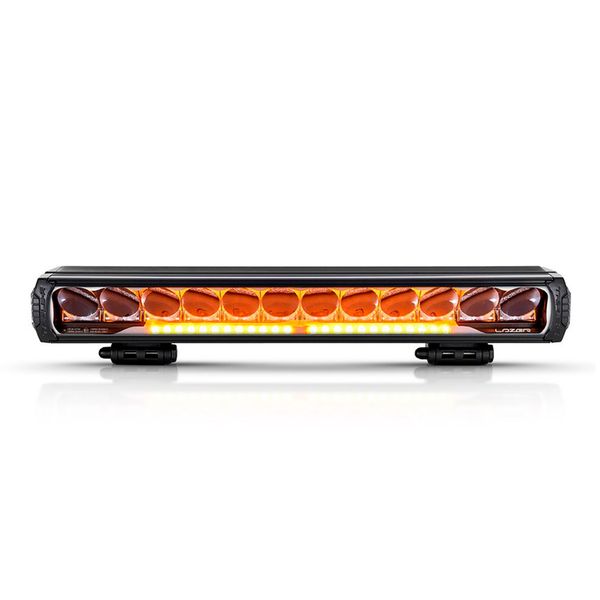

The Triple-R 1250 Beacon, as its name suggests, is equipped with an orange warning light function, which is approved for road use in accordance with the ECE R65 XA1 standard. The warning light integrated into the auxiliary light is an excellent addition, especially for vehicles that travel both in traffic and on construction sites. The warning light can be used, for example, in special transport, when the vehicle is moving from the road to the construction site or even in traffic control. The bright warning light will not go unnoticed by anyone, so the safety of those working on the vehicle is guaranteed without separate warning lights.

The panel’s narrow beam provides a very long range and ensures that visibility does not end even on long straight roads. Like other Triple-R series lights, the beam is round, so the height of the beam is sufficient even when driving in hilly terrain or off-road. In addition, the panel’s 5000K color temperature reduces eye strain and makes using the lights more pleasant. The aluminum frame, polycarbonate lens with a lifetime warranty (against breakage) and advanced Gore-Tex seal (which allows moisture to escape from the inside of the light) ensure that the light does not disappoint even in the toughest use. The perfect choice for both on-road and off-road use! Five-year (60-month) warranty!

E-Mark Mode

The light is approved for road use when this operating mode is used. The light output in E-approved mode is 2772 lumens and the range is 335 m @ 1 lux.

E-Boost Mode

In Boost mode, the light output and range increase significantly, providing maximum performance for e.g. Off-Road use. Light output 13860 lm and range 750 m @ 1 lux. Not E-approved.

The Lazer Triple-R 1250 product family includes four different panels, other models can be found below:

760 €
(5)

Led bar LAZER Triple-R 1250 GEN2 (with parking light) – Straight …
BUY
830 €
(3)

Led bar LAZER Triple-R 1250 Elite i-LBA – Straight / 59 cm / 151W…
BUY
1 100 €

Led bar LAZER Triple-R 1250 Elite+ – Straight / 59 cm / 220W / Re…
BUY
Basic delivery content
Lazer Triple-R 1250 Beacon
2 x Width-adjustable middle leg
Connection and installation instructions
Delivery content (1 pc – Complete set)
Basic delivery content
Auxiliary light holder for EU license plate, Purelux
Relay wiring kit Purelux Pro Serie 12V, DT-2, (1-output)
Note! The power cable for the led bar is equipped with a 6-pin Superseal connector and the wiring harness that comes with the complete set has a DT-2 connector, so you will have to make the connections yourself.
Specifications

Product: Lazer Triple-R 1250 Beacon
Intended use: As an auxiliary light in cars / work machines
Operating voltage: 10-32V
Reference number: 20
Manufacturer’s declared power consumption:
E-Boost: 8.7 A @ 14.4 V
Road mode: 1.7 A @ 14.4 V
Manufacturer’s declared power:
E-Boost: 125 W
Road mode: 25 W
Manufacturer’s declared luminous flux: 13860 lm (E-Boost) / 2772 lm (Road mode)
Manufacturer’s stated range: 750 m @ 1 lux / 1500 lm @ 0.25 lux (E-Boost)
Manufacturer’s stated range: 335 m @ 1 lux / 670 m @ 0.25 lux (Road mode)
Manufacturer’s stated color temperature: 5000 K
Mounting: End legs, width-adjustable bottom legs
Connector: 6-pin superseal
Cable length: approx. 250 mm
Dimensions: 590 x 73 x 105 mm (Width x Height x Depth)
Weight: 2400g
IP rating: IP68
Approvals: EMC: ECE: R10, R148, R149 * , R65 XA1
*Road traffic approval does not apply to E-Boost mode
Country of manufacture: United Kingdom
Warranty: 60 months
Range (E-Boost / E-Mark Mode)
1500 m / 671 m @ 0.25 lux
1061 m / 474 m @ 0.5 lux
750 m / 335 m @ 1 lux
433 m / 194 m @ 3 lux

Installation guide

General connection and installation instructions here: Auxiliary lights installation guide. The link contains the most common installations, including using a relay wiring harness, as well as a guide to installing auxiliary lights on the CAN bus.

You can find the manufacturer’s installation and connection instructions by clicking here.
