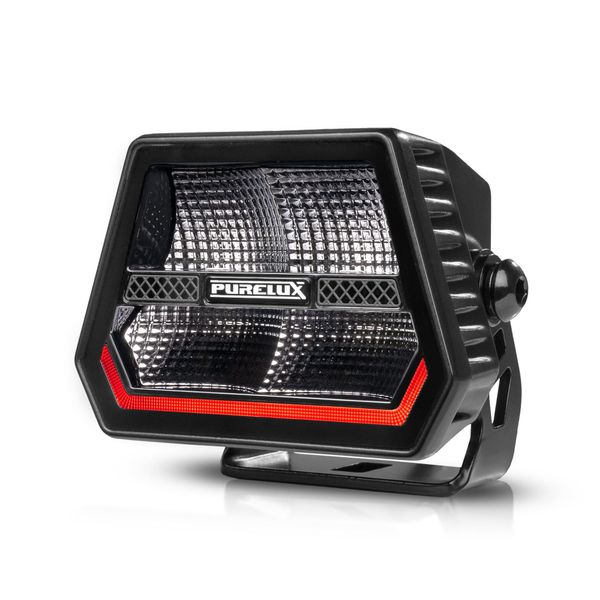

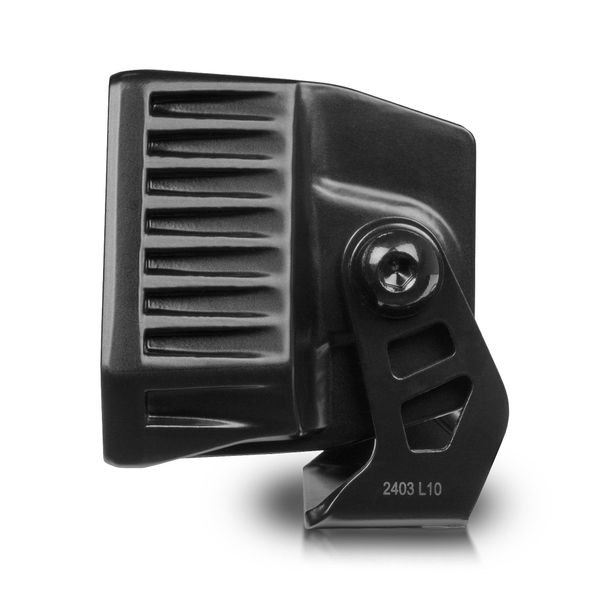

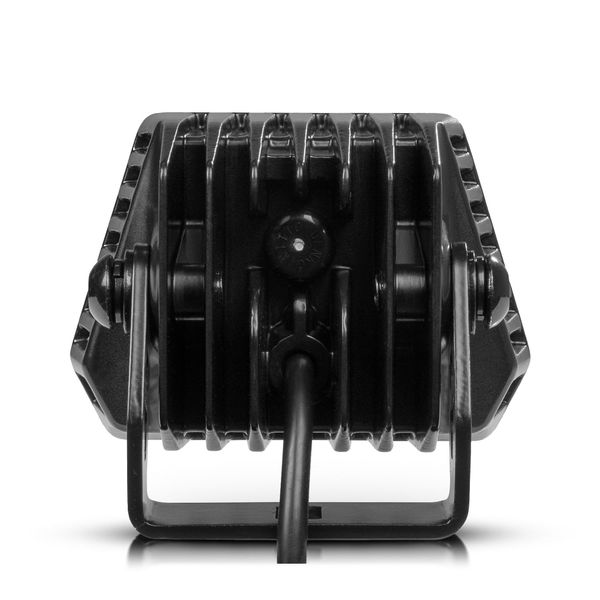

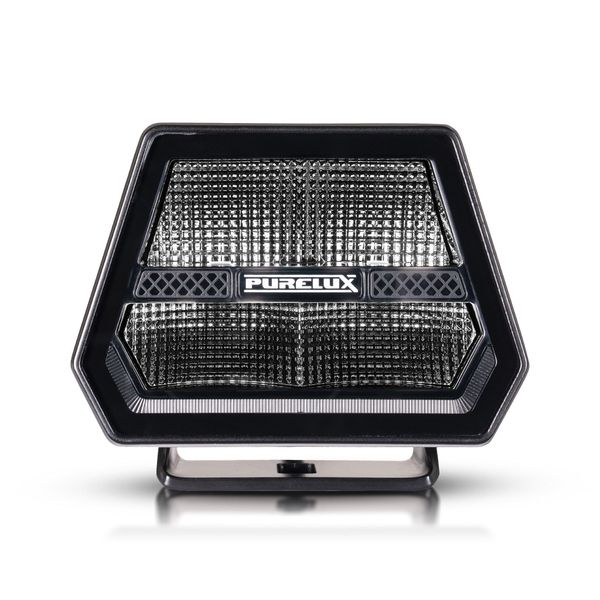

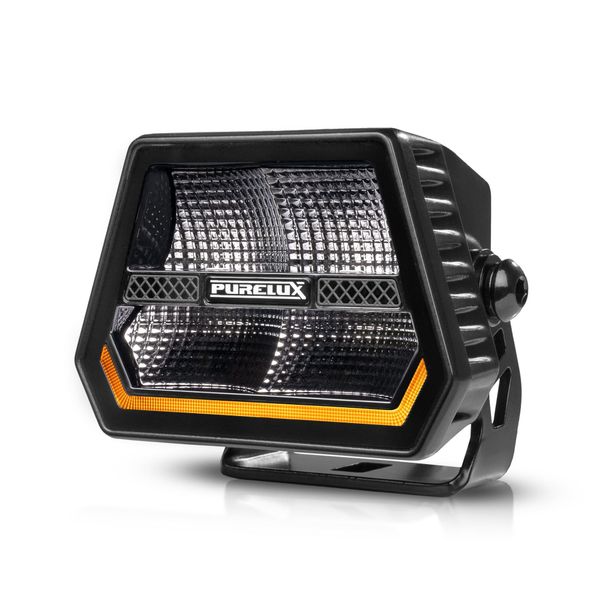

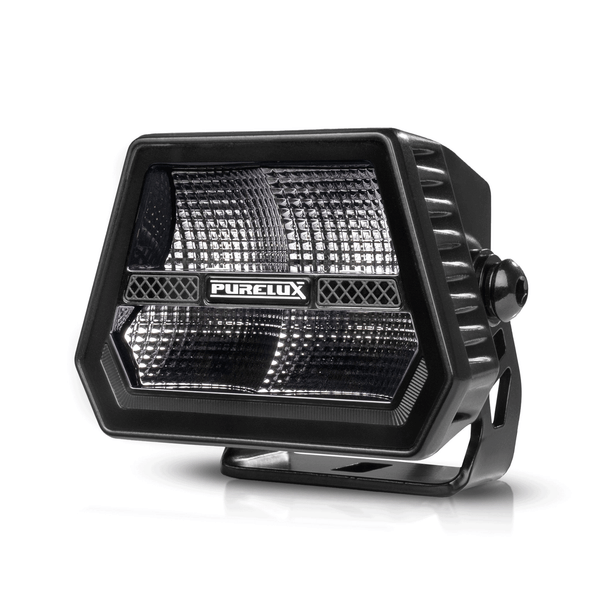

Work light PURELUX Panther Alpha 60 R65 – 12 cm / 60W / Wide

Description

A truly stylish work light with a wide beam and R65-approved warning light for demanding users who do not want to compromise on functionality, power or appearance. Rated light output 3475 lm, range 79 m @ 1 lux. IP69K rating. Suitable for 12V and 24V systems.

The Purelux Panther Alpha 60 R65 is a striking addition to the manufacturer’s Alpha work light series, designed for challenging conditions. This light combines a wide, efficient and even work light beam and an ECE R65-approved warning light with a unique and compact design, bringing desired functionality to the work light market. The light produces 3475 lumens of light output, and thanks to advanced reflector technology, the light pattern is horizontally wide, but vertically softly defined. This allows all the light output to be directed to the work area without causing unnecessary glare outside the illuminated area. In addition to excellent general lighting, the light’s separately approved daytime and nighttime warning flashers increase work safety on the roadside, on construction sites and in the field, making the Panther Alpha 60 R65 the perfect choice for, among others, trucks, construction machinery, plowing equipment, off-road vehicles, construction vehicles, excavators, road construction machinery and all vehicles that require the full attention of other people in the area, regardless of the conditions.

In addition to its excellent beam and ECE R65 Class 1 and Class 2 compliant warning light, the Panther Alpha is equipped with a neutral 5000K color temperature, which is the optimal choice for work lighting. The 5000K color temperature maximizes sharpness and accuracy, making it much easier to detect terrain and obstacles. When the neutral color temperature is combined with a light pattern that is limited from the top and bottom, an excellent working environment is created, where the light is not unnecessarily directed at snowfall or airborne dust or fog, but is directed only at the work object.

One of the features that sets the Alpha series apart from other work lights is its exceptional style. The unique design of the lights is completely different from other work lights on the market, making them not just lights for work, but a truly impressive addition to any vehicle. The dark profile, frameless lens, amber or red warning/parking light bar that runs elegantly along the bottom edge of the lens, and the stunning design ensure a spectacular installation that does not distract attention. In addition, the light is created to withstand challenging conditions, as evidenced by its highest possible tightness rating (IP69K), durable aluminum frame, and practically unbreakable polycarbonate lens. The light also features an intelligent thermal management system that prevents overheating even during long working days and ensures safe and worry-free working even during seasonal work. The lamp is protected against radio interference according to the ECE R10 standard, and the wide operating voltage (9-36V) allows installation in both 12V and 24V systems. Three-year (36 months) warranty!

Note! The Panther Alpha R65 work light is also available in a low-body version, the Panther Alpha 30 R65!

The Panther Alpha work light series includes several work lights of different sizes, power levels and beam patterns. You can check out other models below.

-15%
149,90 €
127,42 €
(18)

Work light PURELUX Panther Alpha 90 – 15 cm / 90W / Wide, 5000K
BUY
Delivery content
Purelux Panther Alpha 60 R65
Sturdy mounting foot
Mounting bolt
Connection and installation instructions (EN, FI, SE, NO, DK)

Note! You can find separately sold stone impact guards for the light here: Stone impact guard Purelux Panther Alpha 60

Specifications
Brand and model: Purelux Panther Alpha 60 R65
Intended use: As a work light / warning light on work machines and vehicles
Operating voltage: 9-36V
Power consumption measured by the light bulb
Work light: 1.7A @ 24V
Parking light: 0.24A @ 24V
Manufacturer’s theoretical power: 60 W
Measured by the light bulb
Work light: 41 W
Parking light: 5.7 W
Manufacturer’s declared luminous efficacy: 4000 lm
Measured by the light source: 3475 lm
Range measured by the light tower: 79 m @ 1 lux / 158 m @ 0.25 lux
Manufacturer’s stated color temperature: 5000 K
Measured by Valostore: 4915 K
Mounting: Mounting stand
Connector: No connector, straight wires
Cable length: 500 mm
Dimensions: 116 x 82 x 77 mm (Width x Height x Depth)
Height with foot: 96 mm
Weight: 715g
IP rating: IP69K
Operating temperature: -40°C – +60°C
Approvals: EMC: ECE R10, R65 Class 1 and 2, CE, RoHS
Warranty: 36 months
Quick Guide

Coupling

Red: Power (+)
Black: Ground (-)
Yellow: Orange parking light
Gray: Red parking light
Green: Warning light (Class 1)
Green + blue: Warning light (Class 2)
Brown: Synchronization and warning light functions

You can find the manufacturer’s installation and connection instructions by clicking here (opens in a new window).
