Marker light STRANDS FOR9T Gravity – 12/24V / 3W / 115 mm

Description

Stylish and modern road traffic approved side marker series, which is equipped with, among other things, a durable structure and a great appearance. Available in versions with red, orange or white LEDs. Operating voltage 10-40V.

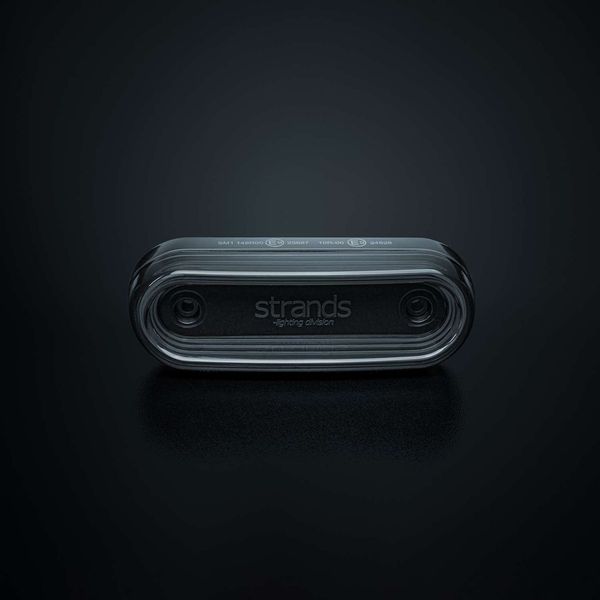

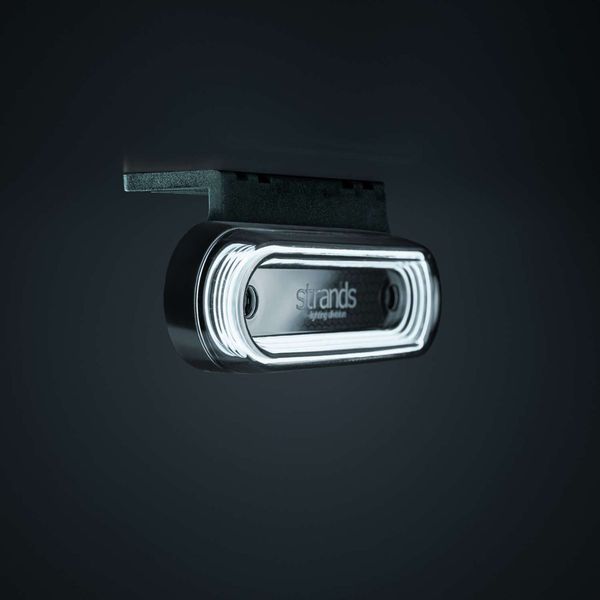

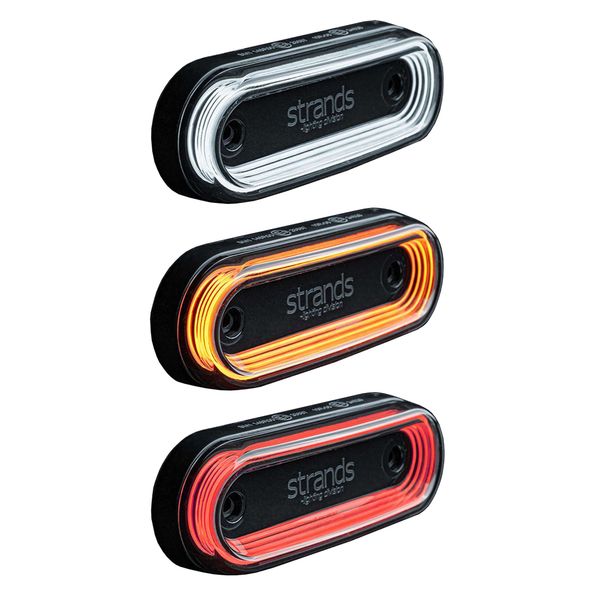

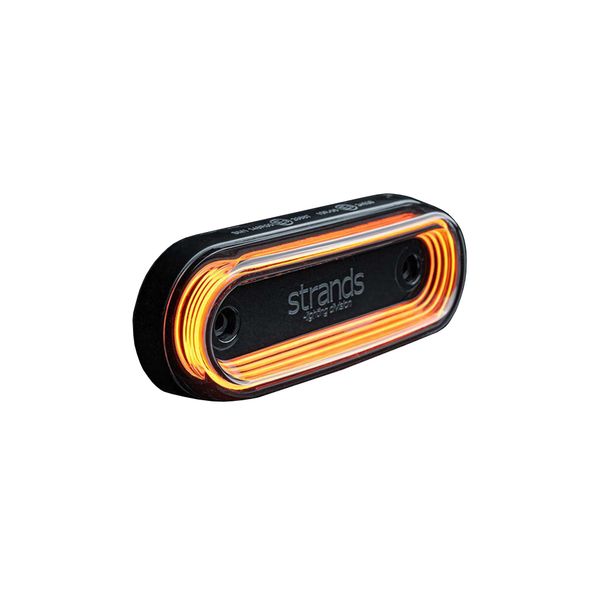

Strands FOR9T Gravity is a stylish set of roadworthy side lights, consisting of red, orange and white daytime running lights. The Gravity series’ stunning oval design and the hypnotic glow that wraps around the edges of the light define the sides of the vehicle in a way that draws attention both in bright daylight and in the deep darkness of the night. The unique design and innovative LED technology of Strands’ FOR9T product family bring exceptional depth to the lights, creating the illusion of lights floating in the air, breaking the laws of physics, that no one will miss. All lights in the series are roadworthy in accordance with the ECE R148 standard, and thanks to the different color options, the same series of lights can cover all different directions of side lights: white to the front, orange to the side and red to the rear. The lights can be mounted either on the surface of the vehicle or they can be hung, for example, on the skirts using the separate bracket provided.

The lamp bodies are made of high-quality ABS plastic and the lenses are made of lightweight and impact-resistant PMMA plastic, so they can withstand all challenges, from UV radiation from the sun and rain to salty mud splashing from tires and pebbles and sand dust kicked up by traffic on dirt roads. The lights are also protected from water and dust according to the IP67 classification, which means they can be installed without worry, for example, near tire housings or down to the vehicle’s skirts. The wide operating voltage (10-40V) allows for installations in both 12V and 24V systems. FOR9T Gravity lights are radio interference-protected according to the R10 standard. Three-year (36-month) warranty!

Specifications
Brand and model: Strands FOR9T Gravity
Intended use: As a warning/marker light in vehicles and work machines
Operating voltage: 10-40V
Manufacturer’s declared power: 2.5 W
Light color: Orange, red or white
Dimensions: 115 x 41 x 23.2 mm (Width x Height x Depth)
Mounting hole spacing: 75 mm
Material: ABS, PMMA

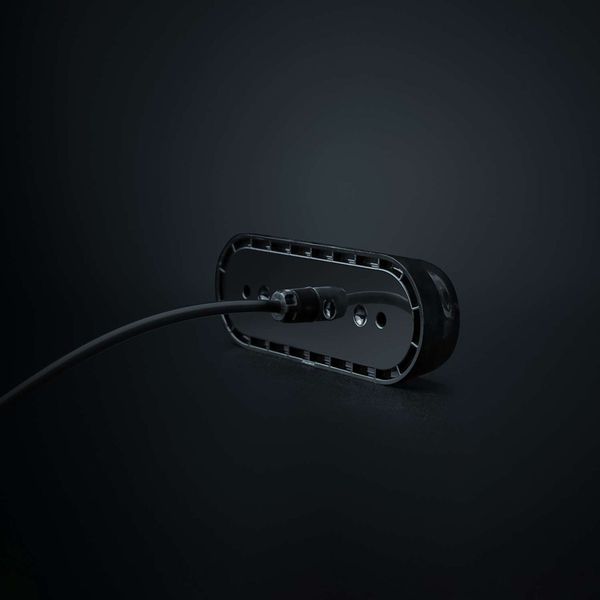

Power cable length: 2500 mm
IP rating: IP67
Operating temperature: -30°C – +65°C
Other: Tinted lens
Approvals: EMC: ECE: R10, R148
Warranty: 36 months
Installation guide

You can find the manufacturer’s installation and connection guide (EN) by clicking here.
