Led bar PURELUX Panther Aero S300 – Straight / 30 cm / 54W / Ref. 17.5

Description

Super slim and aerodynamic led bar, equipped with e.g. with PowerBoost® technology and a wonderful combinated light pattern, which tame the darkness. There is also a dual-colored parking light! Measured light output 3930 lm, measured range 352 m @ 1 lux.

PRODUCT DESCRIPTION – DELIVERY CONTENTS – TECHNICAL DATA

Two power modes (Purelux PowerBoost®)
3930 lumens, 352 meters (@ 1 lux)
A long-range combination beam
Pleasant 5000K color temperature
Aerodynamic and low structure

Stylish two-color parking light
Unprecedented size-performance ratio
Frameless Lexa polycarbonate lens
Easy attachment with end or bottom brackets

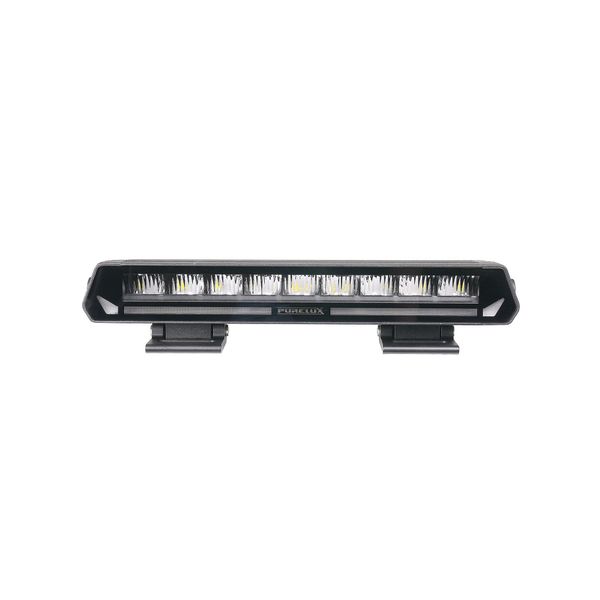

Purelux Panther Aero S300 Gen2 is a very compact and aerodynamically shaped additional light panel, which, in addition to a modern appearance, combines both a great size-power ratio and top features that improve the driving experience! The low body, finished with dark optics and frameless lens, Panther Aero S300 Gen2 is also equipped with a two-color parking light and two different power modes. The light can therefore be selected for use in either the limited power mode approved for road traffic or the Purelux PowerBoost® mode that releases full power, where the lamp offers a measured light output of up to 3930 lumens and a measured range of 352 meters @ 1 lux!

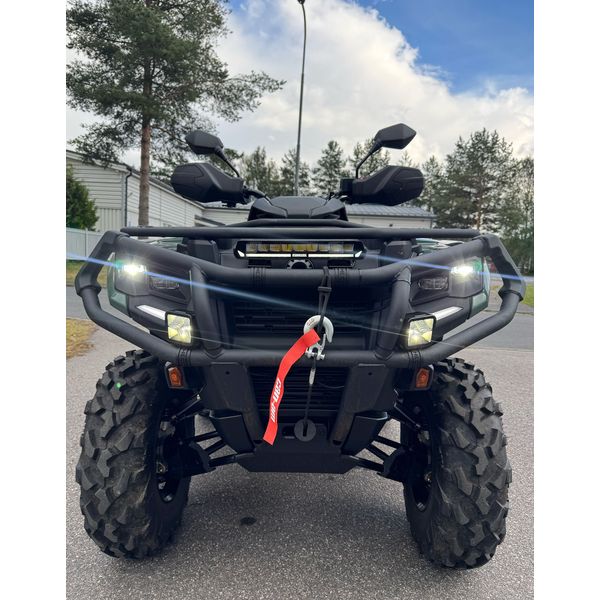

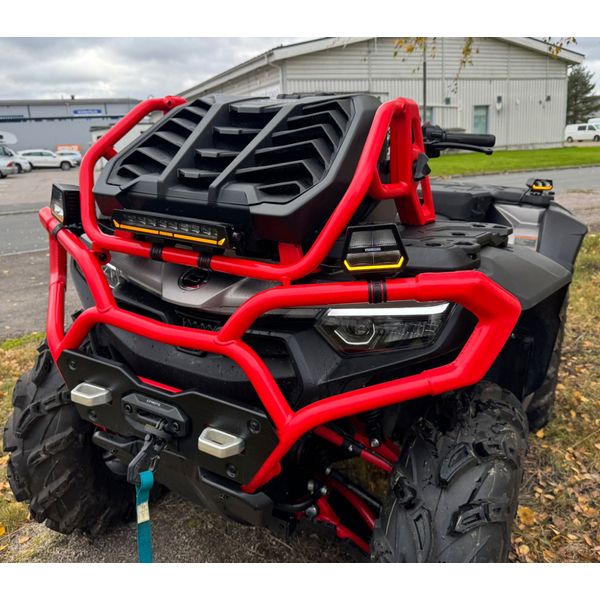

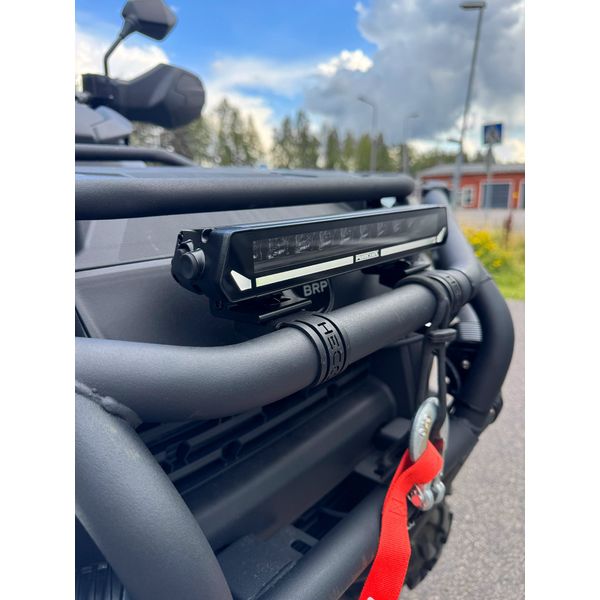

For a little light, the Purelux Panther Aero S300 Gen2 is quite capable, and due to its size, it can be installed discreetly, e.g. for grilles or to complete an already existing lighting system, for example in a truck. In addition, the light is perfect for ATVs, side-by-side racing games and even motorcycles as an additional light. Whether the installation target is a car or a van, a recreational vehicle or a truck, the Purelux Panther Aero S300 Gen2 will make your driving experience significantly better. A great choice for both professional and private driving!

“Notorious Panther performance”

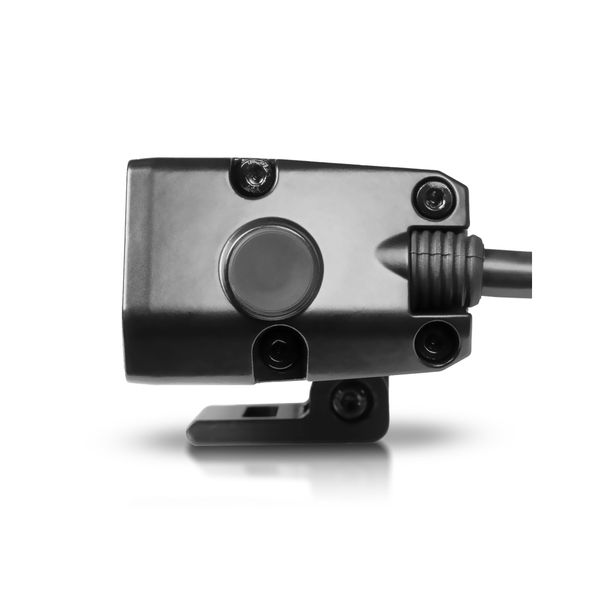

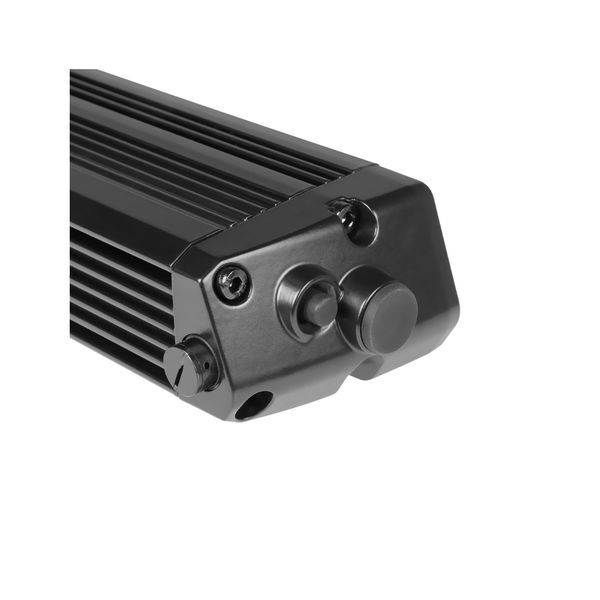

Unlike usual, you don’t need to connect or disconnect any extra wires to activate the lamp’s different power modes, instead switching between PowerBoost® and road mode is unprecedentedly easy by pressing the button at the end of the lamp. The power mode that was last used remains in the lamp’s “memory”, so you don’t have to e.g. in road traffic, make sure that the light is always switched on at maximum power when the power is switched off in between and the car starts moving again.

Note! You can clearly see the difference between Purelux PowerBoost® and road traffic mode – PowerBoost® mode is significantly more efficient and should not be used when driving in normal road traffic, only off-road.

The light beam of the Panther Aero S300 Gen2 is perfect for taming the seemingly endless dark roads of our country. It not only illuminates far straight ahead, but the light pattern also opens up brightly on benches and the edges of the road, without creating a disturbing ball of light in front of the car. In addition, the light pattern is softly limited in the up-down direction, so that the light is directed exactly where it is most needed, and thanks to this, it is also possible to install the lamp close to the road surface, e.g. below the license plate in the air intake. Panther’s high-quality light pattern significantly increases driving safety, because you get more reaction time as a driver, e.g. in case of forest animals running across the road or obstacles looming ahead. With two or more lamps, you get even more possibilities for lighting and you can create the one that suits your needs. You can direct the spotlights either next to each other or on top of each other, making the light pattern even wider or longer.

Along with the precisely finished light beam, another feature that significantly improves the driving experience is the light’s neutral color temperature of 5000 Kelvin. The neutral color temperature is optimal for road traffic, as it facilitates e.g. observation of terrain shapes and obstacles, and it does not reflect blinding brightness from nature’s white snow cover to the driver’s eyes or distort the colors of the target. In addition, the neutral color temperature works better than cool shades in bad weather conditions, and it helps to keep your eyes sharp in the seemingly endless darkness. The 5000K color temperature also suits newer cars with standard LED or Xenon lights.

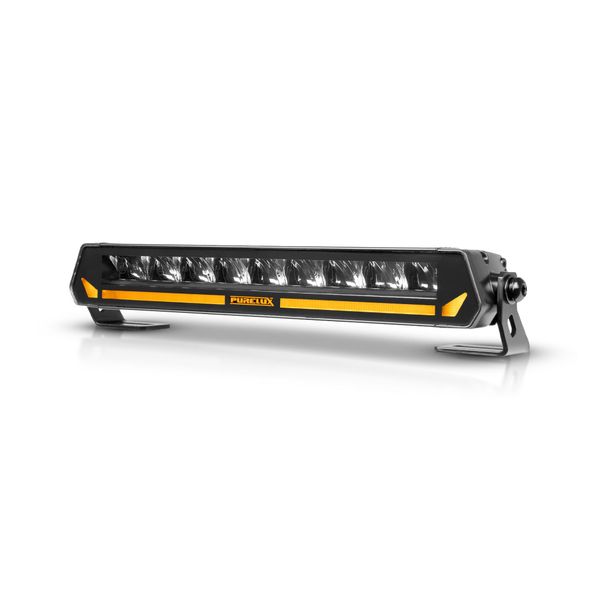

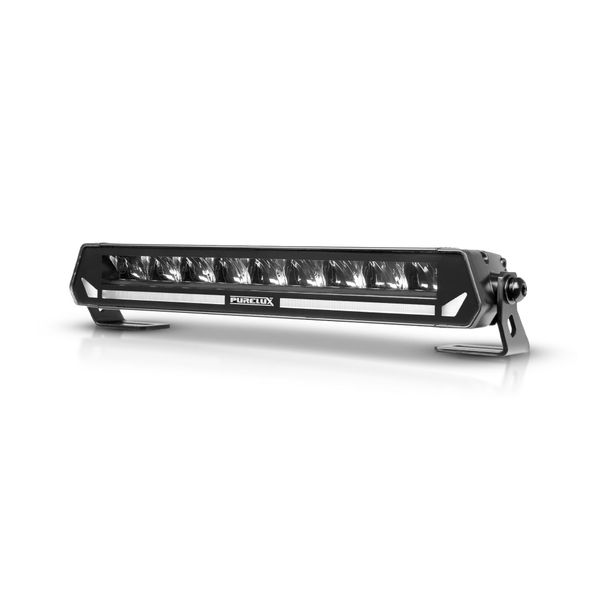

The Panther Aero S300 Gen2’s aerodynamics, stylish black profile, dark optics, and the orange or white parking light running beautifully at the bottom of the light make the panel a finished and modern addition to any vehicle. In addition to visibility and great lighting properties, the lamp is also very durable, as evidenced by e.g. its highest possible tightness rating IP69K. The body of the lamp is made of powder-coated aluminum, which has been treated with a special coating that is excellently resistant to oxidation, the sun’s harmful UV rays, variable weather conditions and also protects against dirt. The lamp’s lens is impact-resistant and high-quality Lexa polycarbonate, which can withstand the inevitable stone blows and scratches from branches when driving. The front part of the light is designed completely flat, i.e. there is no frame around the lens that collects snow, ice or dirt.

“Purelux Panther series is made with uncompromising quality and top of the line performance. Every feature is finely tuned to fit any type of situation and vehicle. Don’t hesitate, ride with the Panther!” – Purelux

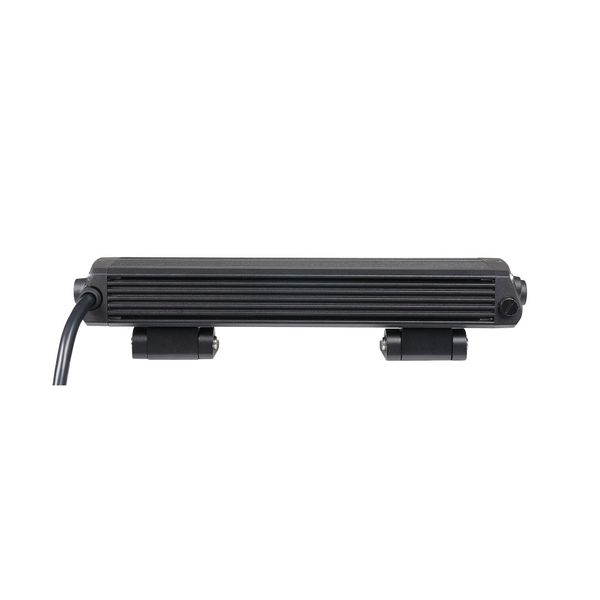

The light comes with both the traditional end legs and the width-adjustable rail mounts below the light, so it can be easily attached to different objects. The connection is made easier by the 2-pole DT connector already in place in the power cord of the lamp, as well as the plus wires going separately to the parking lights. The wide operating voltage range (9-36 V) enables connection to both 12V and 24V systems, and the light’s very moderate reference number (17.5) enables installation alongside practically all standard lights without removing the original lights from use! In addition, the lamp is protected against radio interference in accordance with the ECE R10 standard. Two-year (24 months) warranty!

Valostore’s comment on the Purelux Panther Aero series: “The Panther Aero series represents an exceptionally graceful product group in the additional light market, and this is exactly what makes it an interesting addition to its manufacturer’s Panther product family. Additional lights with a low and aerodynamic body are hardly available, and when combined with the slender body in relation to the size ferocious light output and a wonderful beam, it’s no wonder that the Aeros have been super popular easy to install practically anywhere!”

Basic delivery content
Purelux Panther Aero S300 Gen2
2 x Width-adjustable lower legs
2 x End feet
Power cable counterpart
Connection and installation instructions (FI/SE/NO/DK/EN)
Delivery contents (1 pc – Complete set / Lower mounting)
Basic delivery content
Universal auxiliary light holder Purelux Single Bracket, 2 pcs
Relay wiring harness Purelux Pro Serie 12V, DT-2 (1 output)
Delivery contents (1 pc – Complete set / Side mounting)
Basic delivery content
Universal auxiliary light holder Purelux Twisted Single Bracket, 2 pcs
Relay wiring harness Purelux Pro Serie 12V, DT-2 (1 output)
Delivery contents (2 pcs – Complete set / Lower mounting)
2 x Basic delivery contents
Universal auxiliary light holder for EU plate, Purelux (for 2 lights, thickness 2 mm)
Relay wiring harness Purelux Pro Serie 12V, DT-2 (2 output)
Specifications
Brand and model: Purelux Panther Aero S300 Gen2
Purpose: As an additional light in cars / Off-Road vehicles / work machines
LED: 9 x 6W
Operating voltage: 9-36 V (DC)
Reference number: 17.5
Calculated power: 54 W
Power consumption measured by Valostore
Purelux PowerBoost®: 4.5A @ 12V / 2A @ 24V
Road mode: 1.91A @ 12V / 0.91A @ 24V
Power measured by Valostore
Purelux PowerBoost®: 54W @ 12V / 48W @ 24V
Road mode: 23W @ 12V / 22W @ 24V
Light output declared by the manufacturer: 3800 lm (Purelux PowerBoost®)
Measured by Valostore: 3930 lm (Purelux PowerBoost®)
Measured by Valostore: 1979 lm (Traffic condition)
Range declared by the manufacturer: 366 m @ 1 lux (Purelux PowerBoost®) / 272 m @ 1 lux (Road traffic mode)
Measured by Valostore: 352 m @ 1 lux / 703 m @ 0.25 lux / (Purelux PowerBoost®)
Measured by Valostore: 264 m @ 1 lux / 527 m @ 0.25 lux (Traffic mode)
Color temperature stated by the manufacturer: 5000 K
Measured by Valostore: 5020 K
Fastening: End legs, width-adjustable lower legs
Connector: Deutsch DT-2
The parking lights + wires are separate
Cable length: 50 cm
Dimensions: 296 x 42 x 62.5 mm (Width x Height x Depth)

Height with end legs: 57 mm
Height with lower legs: 62 mm
Weight: 1163 g
IP rating: IP68/IP69K
Approvals: CE, ECE R10, R7, R112*
*Road traffic approval does not apply to PowerBoost® mode
Warranty: 24 months
Importer: Handshake.fi
Installation guide

You can find the manufacturer’s connection and installation instructions (FI/SE/NO/DK/EN) by clicking here.
