Auxiliary light STRANDS Big Energy 9″ EB – Round / 22 cm / 126W / Off-road

Description

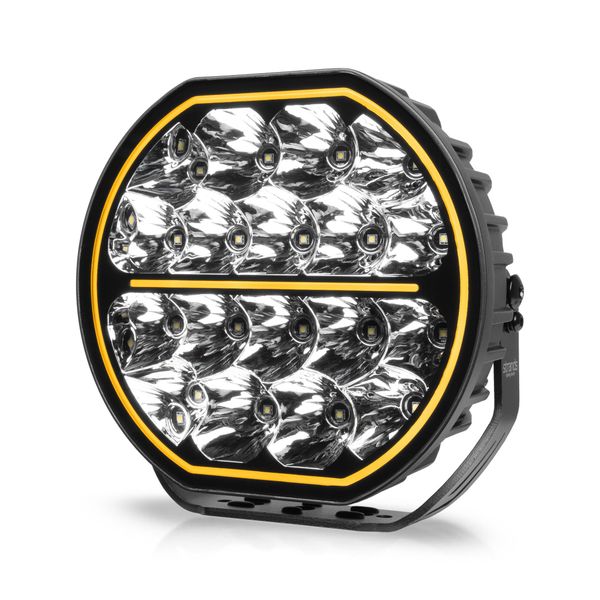

9″ auxiliary light designed for off-road use, which is equipped, among other things, with an orange and white parking light and an intense and far-reaching light beam. Light output 10700 lm declared by the manufacturer, range 644 m @ 1 lux.

Strands Big Energy 9″ EB is a version of the Strands Big Energy 9″ auxiliary light with a more intense light beam and a longer range. According to the manufacturer, this lamp produces a light output of 10,700 lumens and a light beam reaching 644 meters (1 @ lux), which is completely designed for Off-Road and construction site use. Big Energy 9″ EB is an auxiliary light with a slender body that is easy to install even in tighter spaces, and thanks to its light structure compared to its size, it is also well suited for the front of smaller vehicles. Even one light produces an excellent range, and when two lights are installed in parallel, for example, the range of the light beam increases almost to kilometer (approx. 911 m @ 1 lux). As the name implies, Big Energy EB brings a huge amount of light power to support your vehicle’s headlights, and it illuminates the terrain ahead, giving the driver the freedom to focus on the most important thing of all, i.e. driving due to its intense spotlight, this light is not approved for road traffic.

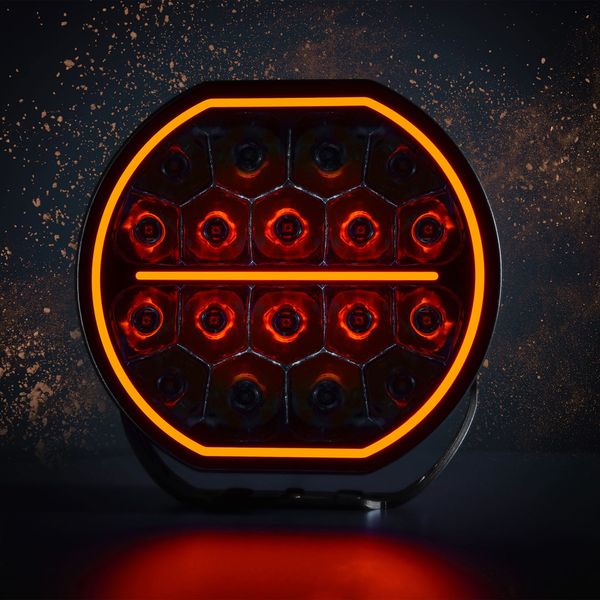

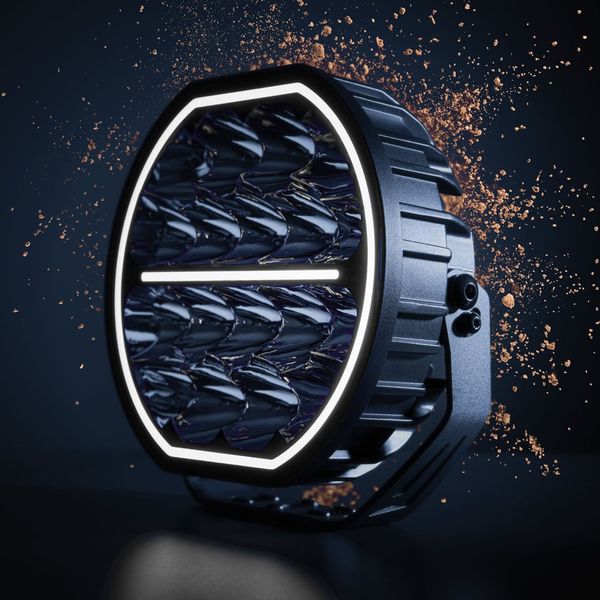

The body of the Strands Big Energy EB auxiliary light is made of durable aluminum and the frameless lens is made of polycarbonate. In addition, the light is protected against water and dust in accordance with the IP67/IP69K classification, so spring and autumn fog or mild winter days’ fog and half-melted road will not damage the lights under any circumstances, even if the lights are installed on the front of a lower vehicle. The parking light can be set to light either white or orange. Big Energy EB is protected against radio interference according to the ECE R10 standard, and installation is facilitated by the DT-4 connector on the power cord of the light. Three-year (36 months) warranty!

Note: Although the light optics appear dark in the picture, they are actually bright.

The same lamp is also available in a version approved for road traffic, which you can find here: Strands Big Energy 9″

Basic delivery content
Strands Big Energy 9″ EB 2.0
Power cord with DT4 connector, 1000 mm
Mounting base
Delivery contents (2 pcs – Complete set)
2 x Basic delivery contents
Auxiliary light holder for EU license plate, Purelux
Relay wiring kit Purelux Pro Serie 12V, DT-2, (1 pc 2-output)
Adapter cable Purelux DT4 – DT2, 2 pcs
Pair of support irons Purelux Stabilizer, 1 pc
Delivery contents (3 pcs – Complete set)
3 x Basic delivery contents
Auxiliary light holder for EU license plate, for 3 lights
Relay wiring kit Purelux Pro Serie 12V, DT-2, (1 pc 3-output)
Adapter cable Purelux DT4 – DT2, 3 pcs
Pair of support irons Purelux Stabilizer, 2 pcs
Delivery contents (4 pcs – Complete set)
3 x Basic delivery contents
Auxiliary light holder for EU license plate, for 4 lights
Relay wiring kit Purelux Pro Series 12V, DT-2, (1 pc 4-output)
Adapter cable Purelux DT4 – DT2, 4 pcs
Pair of support irons Purelux Stabilizer, 2 pcs

Note! The lamp’s power cord has a DT4 connector, and the wiring harness has a DT2 connector. The complete set comes with DT4-DT2 adapter cables that fit in between, but the parking lights are not automatically made to work with the wiring kit, but you have to connect them yourself if you want.

Technical information
Brand and model: Strands Big Energy 9″ EB
Intended use: As auxiliary light in cars / heavy vehicles / work machines
Operating voltage: 10-32 V
Reference number: –
Current consumption stated by the manufacturer: 8.66 A @ 12V / 4.375 @ 24V
Calculated power: 126 W
Power declared by the manufacturer: 104 W @ 12V / 105 W @ 24V
Theoretical light output: 12600 lm
Indicated by the manufacturer: 10700 lm
Range declared by the manufacturer: 644 m @ 1 lux / 1288 m @ 0.25 lux
Color temperature stated by the manufacturer: 6500 K
Mounting: Mounting base
Connector: Deutsch DT4
Cable length: approx. 100 cm

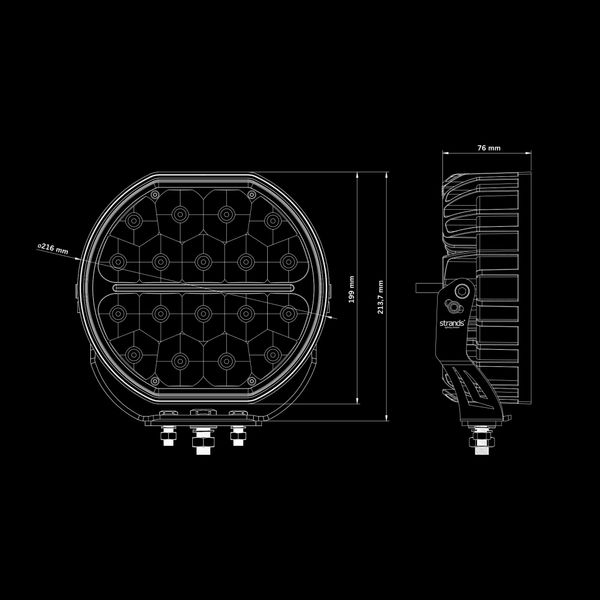

Dimensions: 216 x 199 x 76 mm (Width x Height x Depth)
Height with foot: 213.7 mm
IP rating: IP68 / IP69K
Operating temperature: -35°C to +60°C
Approvals: ECE R10
Warranty: 36 months
Installation guide

You can find the manufacturer’s installation instructions (EN) here: Strands Big Energy 9″ manual (opens in a new window).
